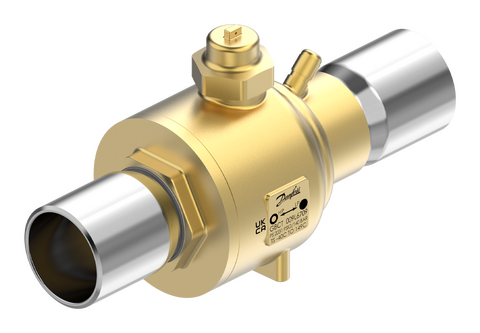

Shut-off valve GBCT 60 D - 009L6709

Service valve: Schrader valve
Producer:
Danfoss
Line: GBCT
Product code: 009L6709
  • Inlet connection type:
    Welded
  • Inlet connection diameter:
    50 mm
  • Maximum operating pressure [bar]:
    140
  • Service valve:
    Schrader valve
  • Inlet flow speed [m/s]:
    0.04
  • Pressure drop [bar]:
    0.00
Zapytaj

Data

Technical data

Inlet connection type
Welded (mm)
Inlet connection diameter
50 mm
Outlet connection type
Welded (mm)
Outlet connection diameter
50 mm
Net weight
[kg]
6.01
Gross weight
[kg]
6.41

Other

Service valve
Schrader valve
Maximum operating pressure
[bar]
140
Temperature range
[°C]
-40 — 149
Body material
Brass
Connection material
Stainless steel

Dimensions

Dimension L
[mm]
275
Dimension L3
[mm]
132
Dimension L4
[mm]
74
Dimension L5
[mm]
81
Dimension D
[mm]
51
Dimension H
[mm]
144
Dimension H1
[mm]
52
Panel mounting thread size
M6 x 1,0

Downloads

Technical documentation, [2.5 MB]
Danfoss
12-2023
EN
Technical documentation, [424.5 KB]
Danfoss
04-2023
EN
Declaration, [530.2 KB]
Danfoss
05-2025
EN
Catalogue, [10.8 MB]
Danfoss
02-2024
EN
Catalogue, [95.1 MB]
Danfoss
02-2019
EN
Technical documentation, EN, Danfoss, 12-2023, [2.5 MB]
Technical documentation, EN, Danfoss, 04-2023, [424.5 KB]
Declaration, EN, Danfoss, 05-2025, [530.2 KB]
Catalogue, EN, Danfoss, 02-2024, [10.8 MB]
Catalogue, EN, Danfoss, 02-2019, [95.1 MB]
