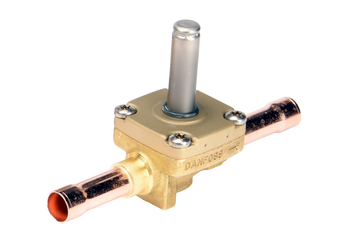

We are pleased to offer a variety of Danfoss direct or servo-operated solenoid valves for use in liquid, suction and hot gas lines. The solenoid valves are suitable for condensing units and multi-compressor units in all refrigeration, freezing and air-conditioning systems. Compatible with halogenated refrigerants including high pressure refrigerants such as R410A (EVRH). They can be supplied as normally open (NO) or normally closed (NC) and with or without manual opening. The offer includes a complete range of solenoid valves and coils adapted to each application.
We are pleased to offer a variety of Danfoss direct or servo-operated solenoid valves for use in liquid, suction and hot gas lines. The solenoid valves are suitable for condensing units and multi-compressor units in all refrigeration, freezing and air-conditioning systems. Compatible with halogenated refrigerants including high pressure refrigerants such as R410A (EVRH). They can be supplied as normally open (NO) or normally closed (NC) and with or without manual opening. The offer includes a complete range of solenoid valves and coils adapted to each application.
Danfoss EVR solenoid valves for more than 20 refrigerants: R22/R407C, R134a, R404A/R507, R410A, R407A, R32, R290, R600, R600a, R1234yf, R1234ze, R404A, R407A, R407C, R125407F R152A, R448A, R449A, R452A, and R450A. They are available in a wide range of types and connection sizes, AC and DC coils and designed for medium temperatures up to 105 °C.
High reliability and durability due to maximum internal and external tightness. Easy to install with flare, solder or flange connections. They provide a higher maximum opening pressure difference (MOPD) of up to 38 bar. The maximum operating pressure (PS) for brazed and flared connections is 45.2 bar and 32 bar for flanged connections.
Danfoss EVR valves can be ordered as a complete unit or as separate components, the valve body, coil and flanges can be ordered separately if required.
Applications of Danfoss solenoid valves: conventional refrigeration installations, heat pump systems, air-conditioning equipment, liquid coolers, portable refrigeration installations.
A range of EVR v2 of solenoid valves has been optimized, strengthened and redesigned, which allows operating with higher pressure refrigerants and use the valves in a wider range of applications, reducing the number of components and service time. For specialists in the heating, cooling and air-conditioning industry, the system advantage is the reduced acquisition and operating costs, which do not negatively affect the reliability of the valves in all applications, from chamber cooling systems to chillers and heat pumps.
