Thermostat UT 72 - 060H1705

Mounting method: Wall
,
Capillary tube length [mm]: 3000
,
Capillary tube material: Copper

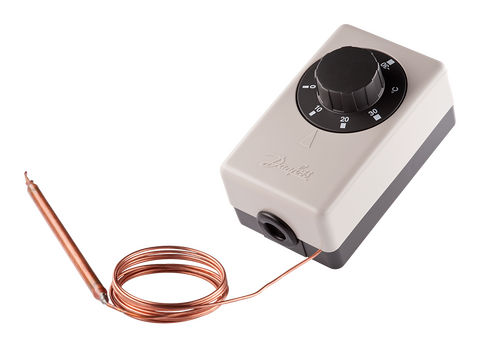

Illustrative photo
Producer:
Danfoss
Line: UT
Product code: 060H1705, alternatives: 060H1708
Mounting method:
Panel Wall
Capillary tube length [mm]:
2000 3000
Capillary tube material:
Copper Stainless steel
  • Regulation range [°C]:
    -30 — 30
  • Reset function:
    Auto
  • Hysteresis adjustment:
    Fixed
Zapytaj

Data

Technical data

Reset function
Auto
Protection rating
IP20
Temperature range
[°C]
-30 — 55
Net weight
[kg]
0.24
Gross weight
[kg]
0.25

Regulation range

Regulation range
[°C]
-30 — 30
Maximum sensor temperature
[°C]
80
Hysteresis adjustment
Fixed
Hysteresis at minimum setting
[K]
3
Hysteresis at maximum setting
[K]
3

Sensor data

Capillary tube length
[mm]
3000
Sensor dimensions (Ø x L)
[mm]
6 x 119
Maximum sensor temperature
[°C]
80
Capillary tube material
Copper

Electrical data

Electrical connection type
Clamps terminal screws
Contact function
SPDT

Others

Mounting method
Wall

Downloads

Technical documentation, [936.3 KB]
Danfoss
02-2021
EN
Technical documentation, [187.8 KB]
Danfoss
07-2021
EN
Declaration, [1.2 MB]
Danfoss
06-2017
EN
Catalogue, [10.8 MB]
Danfoss
02-2024
EN
Catalogue, [95.1 MB]
Danfoss
02-2019
EN
Technical documentation, EN, Danfoss, 02-2021, [936.3 KB]
Technical documentation, EN, Danfoss, 07-2021, [187.8 KB]
Declaration, EN, Danfoss, 06-2017, [1.2 MB]
Catalogue, EN, Danfoss, 02-2024, [10.8 MB]
Catalogue, EN, Danfoss, 02-2019, [95.1 MB]
