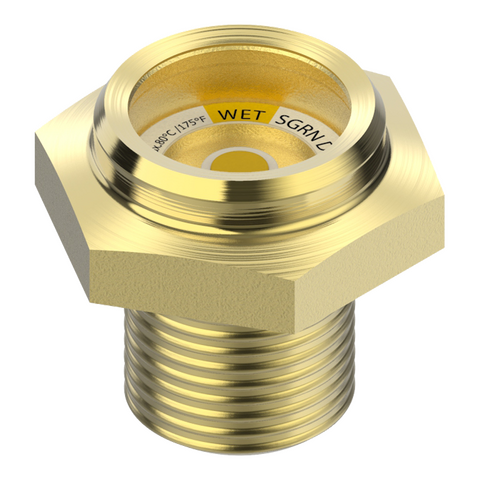

Sight glass SGR - 014-0180

Socket thread: G 1/2"
,
Moisture indicator: N type
Producer:
Danfoss
Line: SGR
Product code: 014-0180
Socket thread:
M20 x 1.5 mm M24 x 1.0 mm NPT 1/2" G 1/2" NPT 3/4" G 3/4"
Moisture indicator:
None I type N type
  • Inlet connection type:
    Thread
  • Maximum operating pressure [bar]:
    35
Zapytaj

Data

Technical data

Connection Type
Thread
Thread type
G
Thread size
1/2"
Net weight
[kg]
0.08
Gross weight
[kg]
0.08
Maximum operating pressure
[bar]
35

Other

Temperature range
-50°C — 80°C
Approved refrigerants
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R507, R513A, R1234yf
Body material
Brass
Connection material
Brass

Dimensions

Dimension H
[mm]
31
Dimension H1
[mm]
19
Dimension B1
[mm]
32
