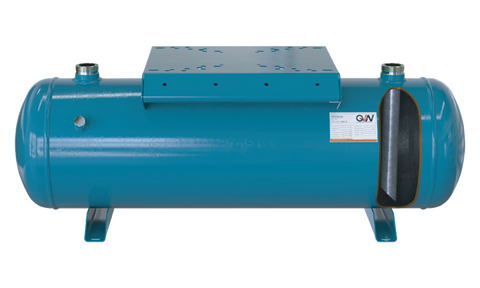

HC liquid receivers

The range of GVN Horizontal Liquid Receivers (HC) with a baseplate for compressor mounting. Models are available in various dimensions and connection diameters, allowing for customization to fit any application. The refrigerant receivers are designed to work with condensing units using refrigerants from the HCFC, HFC groups, as well as R410A, R744 (CO2), R290 (propane), and R717 (ammonia). They are manufactured in compliance with the CE Directive 2014/68/EU [PED] and approved for operation at maximum working pressures of 33 and 45 bar. Volume range from 9 to 100 litres.

Downloads Ask about product

The baseplate is equipped with appropriate mounting holes for connecting the feet of BOCK, BITZER, DORIN, and FRASCOLD compressors.

Liquid receivers provide protection for the refrigeration system against constantly changing refrigerant demand, ensuring proper gas circulation within the circuit. They act as a buffer between the liquid refrigerant and hot gas on the high-pressure side of the system, preventing hot gas from entering the evaporator. Additionally, they serve as a reservoir for collecting and storing refrigerant from the system when maintenance is required.

Optional Rotalock valve configuration allows servicing of the refrigeration installation without the need to remove the refrigerant from the system.

Key Features of GVN HC Liquid Receivers:

  • Horizontal design – stable and facilitates installation and integration within the refrigeration system
  • Integrated compressor base – allows direct mounting of the compressor onto the receiver, reducing footprint and simplifying the assembly of the entire unit
  • High-quality construction – receivers are manufactured from durable materials resistant to high operating pressures
  • Application flexibility – available in various volumes and connection diameters, enabling compatibility with many types of compressors and refrigeration systems
  • Thoughtfully arranged connections – ensures easy installation of control and measurement fittings, valves, and safety devices

Applications of GVN HC Liquid Receivers:

  • Compact refrigeration units
  • Systems where minimizing installation space is crucial
  • Installations requiring a robust, stable base for the compressor combined with a liquid reservoir

Optional Equipment for GVN HC Liquid Receivers:

  • Sight glass
  • Safety valve
  • Rotalock valve
  • Liquid level sensor
  • Additional connections
