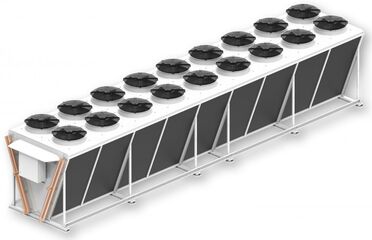

The range of industrial condensers Thermofin TOCD with air cooling and the large V-shape block fin tubes. Intended for work in refrigeration units, air conditioning systems, for cooling liquids in various technological processes. The offer includes versions with vertical air supply with capacity range from 135.1 to 2516.9 kW. The large double-row V-shape block fin tubes ensures high capacitor efficiency, optimizes airflow and storage space. The condensers are resistant to weather conditions and UV rays, they are available in various versions. The maximum operating pressure is 130 bar.

Condensers TOCD are equipped with an axial fans from 4 to 22 pcs with diameter 910 mm with maintains-free outbuild rotor. Motors are thermally protected. Fans are available with five sound pressure levels. The standard body made of galvanized steel with RAL 7035 powder coated is durable and has a self-supporting structure.

Characteristics of condencers TOCD:

  • nominal capacity range from 135.1 to 2 516.9 kW
  • natural refrigerant CO2
  • block fin tubes:
    • double
    • aluminium fins
    • fin spacing: 0, 2.2, 2.4, 3.0 mm
    • 12 mm stainless steel tubes
    • maximum pressure: 130 bar
  • axial fans:
    • from 4 to 22 psc with diameter 910 mm
    • standard IP 54 (IP 55 as option)
    • AC or energy-saving EC controlled by 0-10V or 4-20 mA signal or Modbus signal
    • air supply: vertical


  • circuit partition
  • special colors
  • spraying system
  • vibration dampers
  • tiltable fans
  • streamers for an increased air throw
  • diffusers
  • EC fans
  • K65-joint for gas coolers



  • spraying system for peak loads in case of high ambient temperatures
  • low water consumption
  • optimized energy consumption
  • hygiene and frost protection thanks to the fully-automated drain system
  • control with TCS controller (max. 4 spraying zones)

Service and cleaning

  • smooth fin surfaces prevent soiling and facilitate cleaning
  • longer operating times
  • optional: tiltable fans

Pad system

  • activation of the humidification system in case of higher performance requirements
  • even humidification of the entire surface on the length of the water distribution pipe
  • no aerosol output
  • direct assembly on the air inlet sides
  • easy replacement of the pads thanks to a modular design
