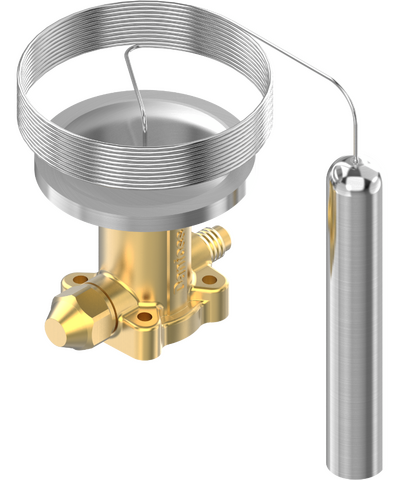

Valve thermostatic element 067B3372

Producer:
Danfoss
Product code: 067B3372
  • Refrigerant:
    R407C
  • Flow direction:
    Single-flow
  • Pressure equalization:
    External
  • MOP point:
    15°C
  • Capillary tube length [mm]:
    5,000
Zapytaj

Data

Technical data

Flow direction
Single-flow
Pressure equalization
External
Temperature range
[°C]
-40°C — 10°C
MOP point
15°C
Capillary tube length
[mm]
5,000
Adjustable superheating
Yes

Connections data

Inlet connection type
Soldered, Flange
Inlet connection diameter
5/8", 7/8", 16 mm, 22 mm
Outlet connection type
Soldered, Flange
Outlet connection diameter
7/8", 1", 1 1/8", 22 mm, 25 mm, 28 mm
Equalization connection type
Flare
Equalization connection diameter
1/4"

Technical data

Body material
Brass
Maximum operating pressure
[bar]
28
Gross weight
[kg]
0.8
Net weight
[kg]
0.63

Others

Compatible lines
TE 20
Approved refrigerants
R407C
Approvals
EAC, LLC CDC TYSK
Shipped parts
Bulb strap, Gasket, O-ring, Key

Dimensions
