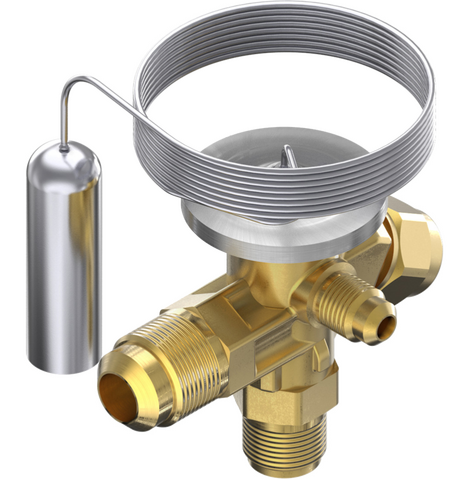

Valve thermostatic element 068Z7485

Producer:
Danfoss
Product code: 068Z7485
  • Refrigerant:
    R454C
  • Body geometry:
    Angleway
  • Flow direction:
    Single-flow, Bi-flow
  • Pressure equalization:
    External
  • MOP point:
    None
  • Capillary tube length [mm]:
    1,500
Zapytaj

Data

Technical data

Body geometry
Angleway
Flow direction
Single-flow, Bi-flow
Valve direction - details
Bi-flow with orifices: 1 - 5
Pressure equalization
External
Temperature range
[°C]
-40°C — 10°C
MOP point
None
Capillary tube length
[mm]
1,500
Adjustable superheating
Yes

Connections data

Connection material
Brass
Inlet connection type
Soldered, ODF (mm), Soldered, ODF (inch), Flare
Inlet connection diameter
3/8"
Outlet connection type
Flare
Outlet connection diameter
1/2"
Equalization connection type
Flare
Equalization connection diameter
1/4"

Technical data

Body material
Brass
Maximum operating pressure
[bar]
34
Static superheating
[°C]
4.0
Gross weight
[kg]
0.32
Net weight
[kg]
0.29

Others

Product codes
068Z7485
Compatible lines
T 2 / TE 2
Approved refrigerants
R454C
Approvals
EAC, LLC CDC TYSK
Shipped parts
Bulb strap

Dimensions
