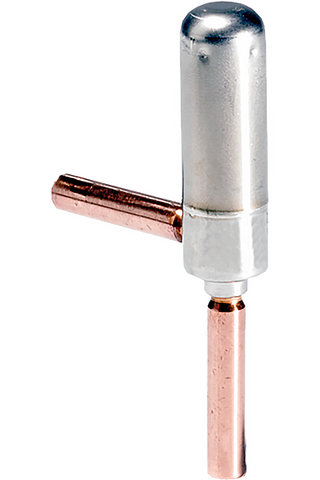

Electronic expansion valve ETS 6 - 40 - 034G5065

Connection size: 5/16" (female) x 5/16" (female)
Producer:
Danfoss
Line: ETS 6
Product code: 034G5065, alternatives: 034G5060
  • Nominal capacity [kW]:
    29.38
  • Valve type:
    Stepper
  • Flow direction:
    Bi-flow
  • Body geometry:
    Angleway
  • Inlet connection diameter:
    5/16"
  • Outlet connection diameter:
    5/16"
Zapytaj

Data

Technical data

Nominal capacity
[kW]
29.38
Maximum operating pressure
[bar]
47
Flow direction
Bi-flow
Maximal OPD
[bar]
21
Maximal reverse OPD
[bar]
7
Motor coil type
Unipolar
Motor total half-steps
480

Connections data

Connection material
Copper
Inlet connection type
Soldered, ODF (inch)
Inlet connection diameter (A)
5/16"
Outlet connection type
Soldered, ODF (inch)
Outlet connection diameter (B)
5/16"

Body data

Body geometry
Angleway
Body material
Stainless steel
Manual opening function
Optional
Gross weight
[kg]
0.08
Net weight
[kg]
0.05

Other

Approvals
CE, CQC, EAC, LLC CDC TYSK, RoHS, UKCA, UL
Compatible controllers
EKE 1A, EKE 1B, EKE 1C, EIM 336
Allowed oil types
Mineral, POE
Refrigerant temperature range
-30°C — 70°C
Refrigerants
R22, R32, R134a, R290, R404A, R407C, R410A, R448A, R449A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R600a, R1234yf
Other refrigerants
R407H, R449B, R463A, R507A

Dimensions

Related products

Downloads

Technical documentation, [2.8 MB]
Danfoss
08-2019
EN
Technical documentation, [730.1 KB]
Danfoss
03-2021
EN
Technical documentation, EN, Danfoss, 08-2019, [2.8 MB]
Technical documentation, EN, Danfoss, 03-2021, [730.1 KB]
