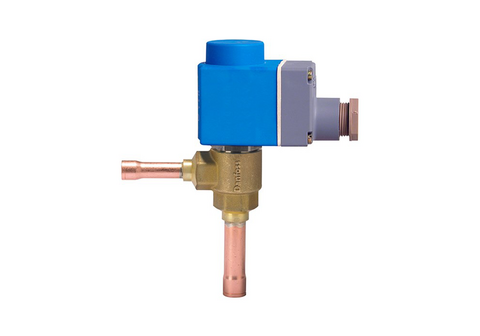

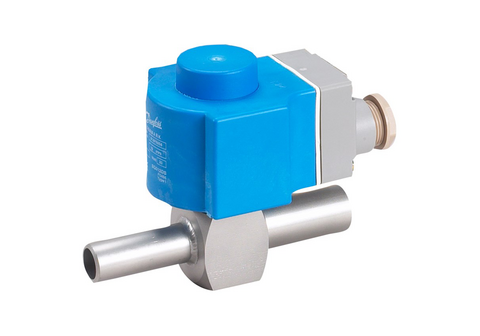

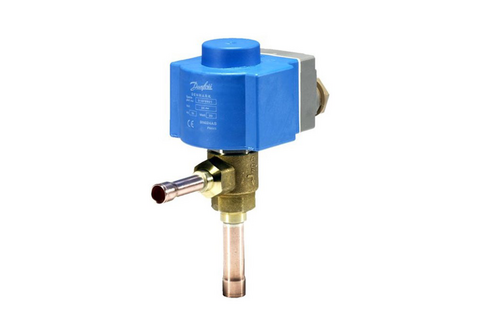

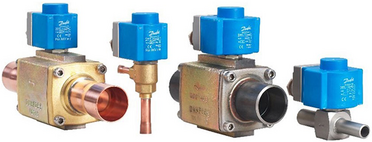

The series of Danfoss AKV electronically controlled expansion valves is designed for precise regulation of refrigerant supply in evaporators in air conditioning and refrigeration systems, as well as in reverse cycle systems such as heat pumps. The valves have been adapted for operate with refrigerants: R134a, R22, R23, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R463A, R507, R513A, R513B, R515A, R515B, and R744/CO2, with nominal capacity ranging from 0.22 kW to 453.40 kW. Danfoss electronic expansion valves are designed for refrigeration systems in food retail stores as they ensure safe and reliable operation. They stand out above all for their excellent flow control, even for low flow rates, and the tightness of the cooling circuit.

Electronically controlled expansion valves provide precise temperature control, long life, simple service and low maintenance costs. The range also includes versions dedicated to operation in supercritical CO2 systems with a maximum operating pressure of 140 bar.

The AKV valves are supplied as a parts programme with separate valve body and coil (with terminal box, cable or DIN plug) and have an exchangeable orifice. Are intended to operate with Danfoss ADAP-KOOL series controllers.

Applications of Danfoss AKV electronic expansion valves:

  • traditional refrigeration systems
  • cold rooms
  • water chiller
  • heat pupms
  • VRF air conditioning systems
  • Multi-Split air conditioning systems

Characteristics of Danfoss AKV electronic expansion valves:

  • applicable to R134a, R22, R23, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R463A, R507, R513A, R513B, R515A, R515B and R744 (CO2)
  • valve type: impulse valve
  • flow direction: unidirectional
  • body material: brass
  • body geometry: angular, through-hole
  • no adjustment required

The offer includes a wide selection of models suitable for operation with most refrigerants, in a wide range of capacities and pressure ranges to meet the requirements if different applications.
