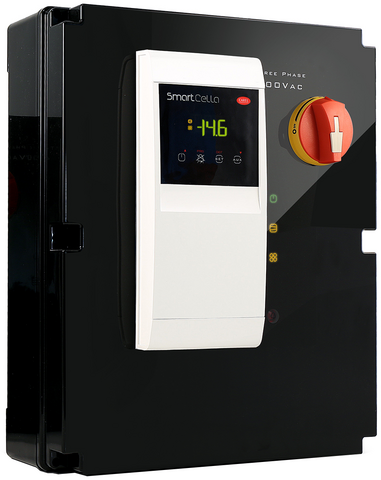

Controller WP00B24A10

Producer:
Carel
Line: SmartCella
Product code: WP00B24A10
  • Power supply:
    400V AC
  • Inputs (digital / analog):
    6 / 5
  • Outputs (digital / analog):
    7 / 0
  • Communication protocol:
    Modbus (option)
  • Expansion valve type:
    EXV (option), TXV
  • Mounting direction:
    Vertical
Zapytaj

Data

Technical data

Power supply
400V AC
Heater power supply (defrost)
400V
Evaporator fan power supply
230V
Condenser fan power supply
230V
Real time clock
No
Communication protocol
Modbus (option)

Relays

Compressor relay
5,5 HP
Defrost relay
9 A
Evaporator fan relay
2,5 A
Condenser fan relay
3,9 A
Auxiliary relay 1
3,9 A

Inputs

Number of digital inputs (max)
6
Number of analog inputs (max)
5
Input signal
NTC 10k, NTC HT

Outputs

Number of digital outputs
7
Number of analog outputs
0

Protection

Compressor protection
2,5 - 4 A
Heaters protection
10 A
Evaporator fan protection
10 A
Condenser fan protection
10 A
Auxiliary circuit protection
6 A
RCD
No

Other

Expansion valve type
EXV (option), TXV
Number of controled valves
1
Support for 3-phase devices
Yes
Mounting direction
Vertical
Additional features
Mains switch, Solenoid valve relay, Oil heater relay
Display
Internal, External (optional)

Related products

Read whole article: Temperature sensors
Temperature sensors
read more

Downloads

Folder, [13.6 MB]
Carel
10-2019
EN
Folder, [3.3 MB]
Carel
10-2019
PL
Technical documentation, [2.0 MB]
Carel
05-2020
EN
Technical documentation, [799.7 KB]
Carel
09-2021
EN
User manual, [3.5 MB]
Carel
09-2020
EN
Folder, EN, Carel, 10-2019, [13.6 MB]
Folder, PL, Carel, 10-2019, [3.3 MB]
Technical documentation, EN, Carel, 05-2020, [2.0 MB]
Technical documentation, EN, Carel, 09-2021, [799.7 KB]
User manual, EN, Carel, 09-2020, [3.5 MB]
