Condensing unit W9-3DS-150X

Producer:
Copeland
Line: Discus
Product code: W9-3DS-150X
  • Cooling capacity [kW]:
    24.60
  • Displacement [m³/h]:
    49.9
  • Refrigerant:
    R22, R404A, R407A, R407C, R407F, R448A, R449A
  • Capacity control:
    None, Step (option), Inverter (option)
  • Power supply:
    400V/3Ph/50Hz
Zapytaj

Data

Compressor technical data

Compressor model
3DS-150X
Displacement
[m³/h]
49.9
Oil charge
[l]
3.70
Oil type
POE RL32-3MAF
Allowed oil types
POE RL32-3MAF, POE MOBIL EAL Arctic 22 CC
Type of lubrication
Oil pump
Capacity control
None, Step (option), Inverter (option)

Compressor electrical data and limits

Compressor power supply
400V/3Ph/50Hz
Maximum continuous current
[A]
29.0
Locked rotor amperage
[A]
128.0
Maximum suction pressure
[bar]
22.5
Maximum discharge pressure
[bar]
31.0

Condenser data

Condenser model
W9
Fan model
611
Fan quantity
2
Fans power
[W]
800
Fan current
[A]
4.10
Air flow
[m³/h]
11,988

Condensing unit data

Receiver volume
[l]
18.9
Net weight
[kg]
303
Gross weight
[kg]
417
Housing
Optional
Approved refrigerants
R22, R404A, R407A, R407C, R407F, R448A, R449A

Dimensions

Length
[mm]
820
Height
[mm]
869
Width
[mm]
1,640

Connections

Suction valve diameter
[inch]
1 5/8
Liquid line diameter
[inch]
7/8

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Ambiance

Cooling capacity [kW]

Evaporation temperature [°C]
Ambient temperature [°C]

-40
-35
-30
-25
-20
-15
-10
-5
0
5
7
20
8.07
10.74
13.77
17.21
21.09
25.43
30.23
35.49
41.20
47.35
49.94
27
6.74
9.25
12.06
15.20
18.71
22.63
26.97
31.72
36.90
42.52
44.89
32
5.77
8.17
10.80
13.72
16.98
20.60
24.60
28.99
33.80
39.03
41.26
35
7.51
10.04
12.83
15.93
19.36
23.16
27.34
31.92
36.93
38
6.85
9.27
11.93
14.87
18.12
21.72
25.69
30.04
41
6.19
8.50
11.03
13.80
16.88
20.27
24.02
28.15
43
5.75
7.99
10.42
13.09
16.04
19.30
22.91
26.89
46
7.22
9.51
12.02
14.78
17.84
21.23
49
6.46
8.61
10.95
13.52
16.37

Power consumption [kW]

Evaporation temperature [°C]
Ambient temperatura [°C]

-40
-35
-30
-25
-20
-15
-10
-5
0
5
7
20
5.94
6.78
7.66
8.56
9.47
10.38
11.28
12.17
13.02
13.85
14.18
27
6.02
6.98
7.99
9.02
10.08
11.13
12.17
13.20
14.20
15.17
15.55
32
6.02
7.06
8.16
9.29
10.45
11.60
12.75
13.88
14.99
16.06
16.48
35
7.09
8.24
9.43
10.64
11.86
13.07
14.26
15.43
16.56
38
7.08
8.29
9.54
10.81
12.10
13.37
14.63
15.85
41
7.06
8.32
9.63
10.96
12.31
13.65
14.97
16.26
43
7.03
8.33
9.67
11.05
12.44
13.82
15.18
16.51
46
8.31
9.72
11.16
12.61
14.05
15.48
49
8.27
9.74
11.24
12.75
14.26

Application range

Legend

  • Suction gas temperature: 20°C
  • Suction gas temperature: 20°C, additional head cooling
  • Suction gas temperature: 20°C, ASERCOM certified

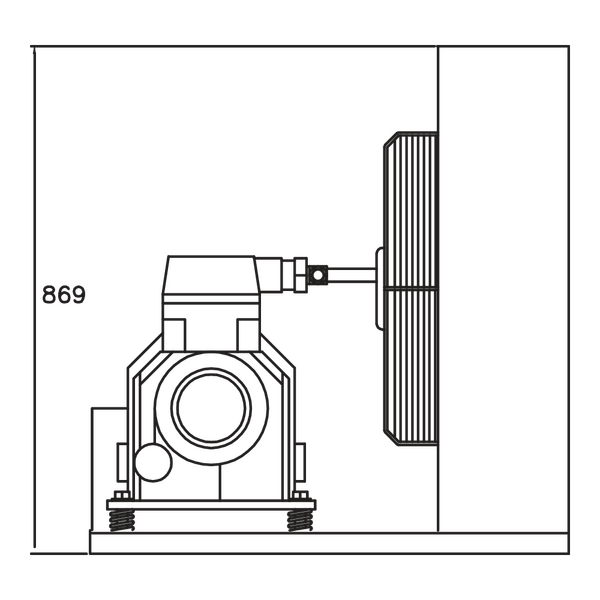

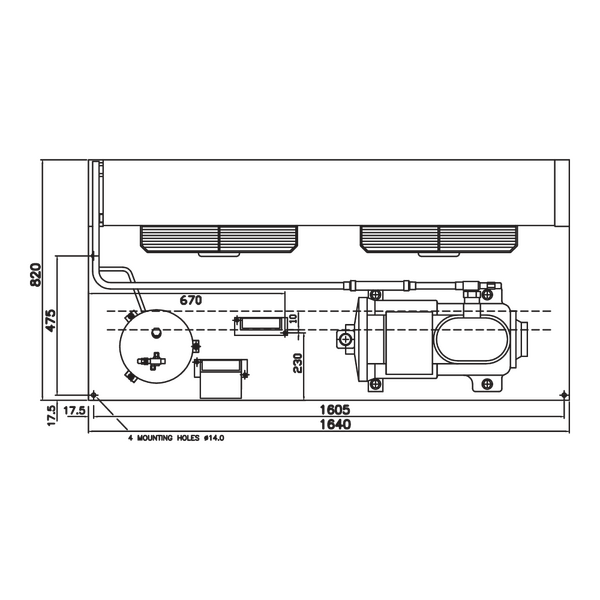

Dimensions

Downloads

Catalogue, [8.2 MB]
Copeland
01-2022
PL
Safety manual, [1.4 MB]
Copeland
11-2014
User manual, [3.8 MB]
Copeland
07-2016
EN
Technical documentation, [1.4 MB]
Copeland
EN
Folder, [480.1 KB]
Copeland
09-2012
EN
Declaration, [140.9 KB]
Copeland
04-2019
EN
Declaration, [137.5 KB]
Copeland
02-2021
EN
Technical documentation, [339.2 KB]
Copeland
EN
User manual, [1.9 MB]
Copeland
PL
Folder, [946.3 KB]
Copeland
PL
User manual, [1.5 MB]
Copeland
08-2012
PL
Folder, [4.2 MB]
Copeland
02-2012
PL
Technical documentation, [1.3 MB]
Copeland
EN
Technical documentation, [726.7 KB]
Copeland
EN
Technical documentation, [74.6 KB]
Copeland
EN
User manual, [7.7 MB]
Copeland
PL
Technical documentation, [715.1 KB]
Copeland
EN
Catalogue, [7.8 MB]
Copeland
01-2023
EN
Catalogue, PL, Copeland, 01-2022, [8.2 MB]
Safety manual, , Copeland, 11-2014, [1.4 MB]
User manual, EN, Copeland, 07-2016, [3.8 MB]
Technical documentation, EN, Copeland, [1.4 MB]
Folder, EN, Copeland, 09-2012, [480.1 KB]
Declaration, EN, Copeland, 04-2019, [140.9 KB]
Declaration, EN, Copeland, 02-2021, [137.5 KB]
Technical documentation, EN, Copeland, [339.2 KB]
User manual, PL, Copeland, [1.9 MB]
Folder, PL, Copeland, [946.3 KB]
User manual, PL, Copeland, 08-2012, [1.5 MB]
Folder, PL, Copeland, 02-2012, [4.2 MB]
Technical documentation, EN, Copeland, [1.3 MB]
Technical documentation, EN, Copeland, [726.7 KB]
Technical documentation, EN, Copeland, [74.6 KB]
User manual, PL, Copeland, [7.7 MB]
Technical documentation, EN, Copeland, [715.1 KB]
Catalogue, EN, Copeland, 01-2023, [7.8 MB]
