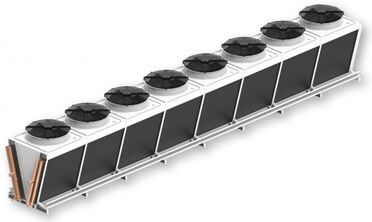

We are glad to offer Thermofin air-cooled industrial condensers with a single V-shaped block fin tube for use in refrigeration, air-conditioning systems and for cooling liquids in various technological processes. Condensers, resistant to weather conditions and UV rays, available in various versions, enable flexible selection of the device. The offer includes versions with vertical exhaust in the nominal capacity range from 52.2 to 720.7 kW. V-shaped block fin tube ensures high condenser efficiency, optimizes airflow and utilization of storage space.

TCW condensers are equipped with axial fans from 2 to 9 pcs, with diameter of 910 mm, with maintenance-free external motors with F insulation class. Motors are thermally protected on the winding. Working temperature ranges from -30 °C to 60 °C. The noise level, which is crucial for outdoor installation under certain environmental conditions, is particularly low due to the latest generation of fans with two speeds. Optional equipment with fans wired and ready for connection in a terminal box.

Standard body made of galvanized steel with RAL 7035 powder coated housing that is durable and has a self-supporting structure.

Block fin tube made of internally corrugated copper tubes with diameter of 12 mm. Aluminium fins with spacing: 2.0; 2.2; 2.4; 3.0 mm. Optional: Slats made of aluminium coated with epoxy resin. To prevent oxidation, the exchangers are brazed under a protective gas atmosphere.

Characteristics of TCW condensers:

  • nominal capacity: from 52.2 to 720.7 kW
  • sound pressure: from 29 to 64 dB (A)
  • refrigerant: HFC
  • block fin tubes:
    • aluminium fin
    • fin spacing: 2.0; 2.2; 2.4; 3.0 mm
    • parameters of block: 40 x 34 mm
    • 12 mm copper tubes
  • axial fans:
    • from 2 to 9 pcs with diameter of 910 mm
    • air discharge: vertical


  • separation of the condenser section
  • vibration dampers
  • special painting

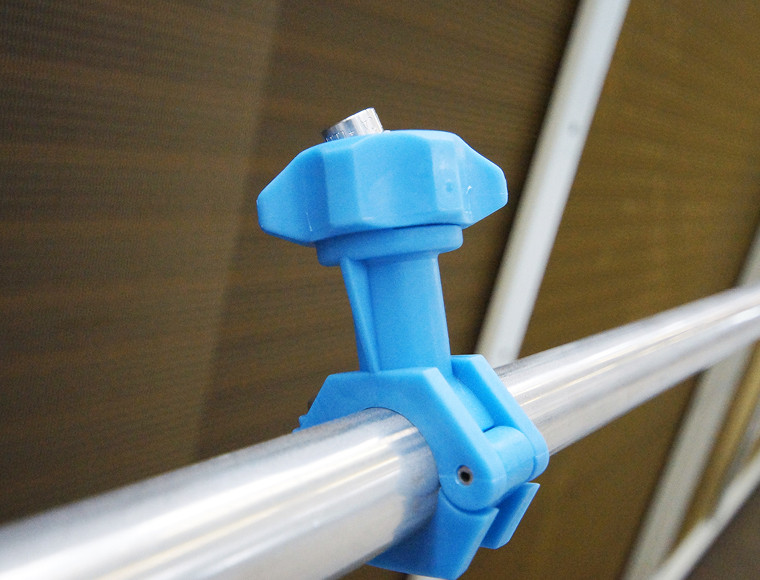

  • spray system
  • tilting fans
  • streamer (extends the air throw distance)
  • Pole tekstowediffusers



  • spraying system for peak loads in high ambient temperatures
  • low water consumption
  • optimized energy consumption
  • frost protection due to a fully automatic drain system
  • control via TCS controller (max. 4 spraying zones)

Service and cleaning

  • the smooth surfaces of the fins prevent dirt and facilitate cleaning
  • longer operating time

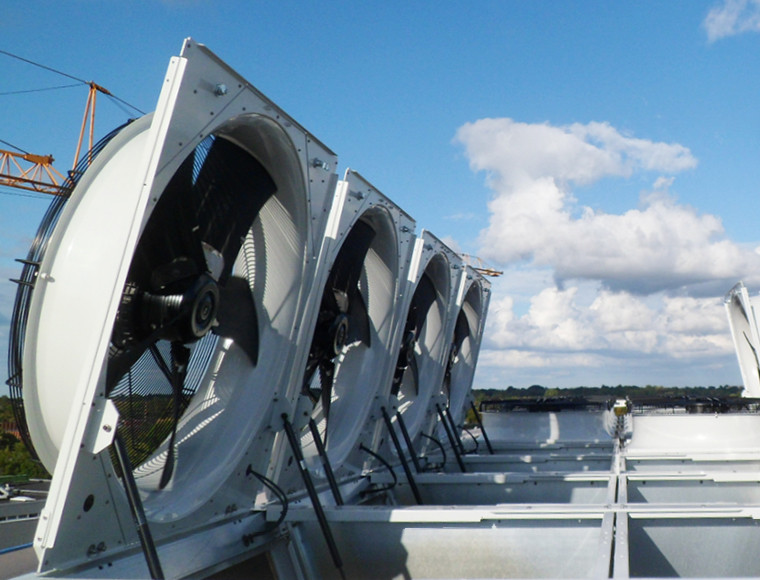

  • optional: tiltable fans

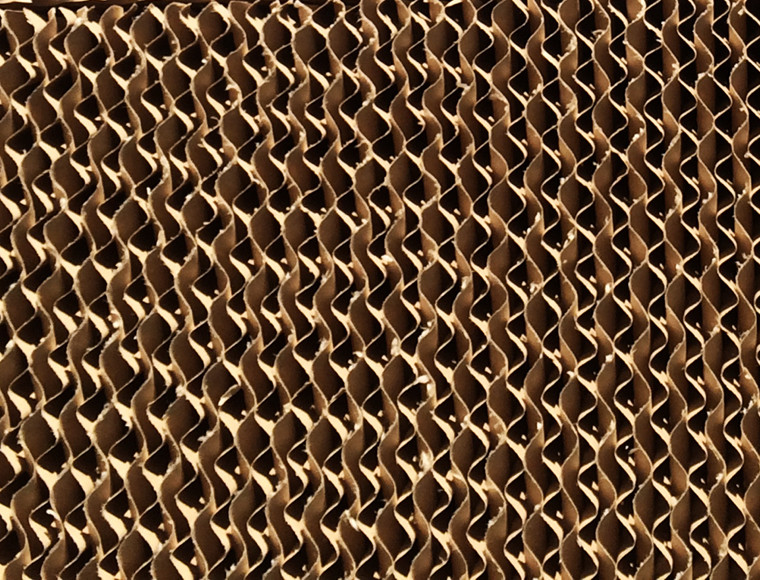

Pad system

  • activation of the humidification system in case of higher performance requirements
  • equable humidification of the entire surface of the length of the water distribution pipe
  • no aerosol output
  • direct installation on the air inlet sides
  • easy replacement of covers due to modular design
