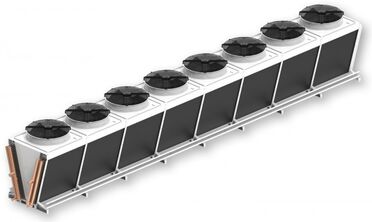

The range of condensers Thermofin TACW for application in refrigeration units, air conditioning systems, for cooling liquids an various technological processes. They are designed for work with NH3 (ammonia) refrigerant. Weather resistant condensers are available in various vercions. The offer includes models with vertical air supply with capacity range from 59.1 to 700.9 kW. The large double-row V-shape lamellar block ensures high capacitor efficiency, optimizes airflow and storage space.

Condensers TACW are equipped with axial fans from 2 to 9 pcs with diameter 910 mm with maintains-free outbuild rotor. Temperature range from -30°С to 60°С. The noise level is especially low thanks to the latest generation of fans with two speeds. Motors are with thermal protection. The standard body made of galvanized steel with RAL 7035 powder coated is durable and has a self-supporting structure. 

Block fin tubes made from stainless steel with tube diameter 12 mm. Fin spacing: 2.0, 2.2, 2.4, 3.0 mm. Additionally: aluminum slats covered with epoxy resin. The heat exchangers are soldered in a protective gas environment to prevent oxidation.

Characteristics of TACW:

  • nominal capacity range from 59.1 to 700.9 kW
  • noise pressure from 29 to 64 dBa
  • refrigerant R717 (NH3)
  • block fin tubes:
    • aluminium fins
    • fin spacing: 2.0; 2.2; 2.4; 3.0 mm
    • parameters of block: 40 х 34 mm
    • 12 mm stainless steel tubes 
  • axial fans:
    • from 2 to 9 pcs with deameter 910 mm
    • vertical air supply


  • circuit partition
  • special colours
  • spraying system
  • vibration dampers
  • tiltable fans
  • streamers for an increased air throw
  • diffusers



  • spraying system for peak loads in high ambient temperatures
  • low water consumption
  • optimized energy consumption
  • frost protection due to a fully automatic drain system
  • control via TCS controller (max. 4 spraying zones)

Service and cleaning

  • the smooth surfaces of the fins prevent dirt and facilitate cleaning
  • longer operating time
  • optional: tiltable fans

Pad system

  • activation of the humidification system in case of higher performance requirements
  • equable humidification of the entire surface of the length of the water distribution pipe
  • no aerosol output
  • direct installation on the air inlet sides
  • easy replacement of covers due to modular design
