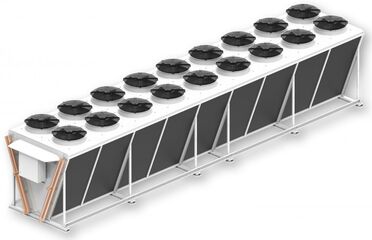

The range of industrial condensers Thermofin TACD with air cooling and the large V-shape lammelar block. Intended for application in refrigeration units, air conditioning systems, for cooling liquids in various technological processes. They are designed for work with NH3 (ammonia) refrigerant. Weather resistant condensers are available in various vercions. The offer includes models with vertical air supply with capacity range from 100.1 to 1500.7kW. The large double-row V-shape lamellar block ensures high capacitor efficiency, optimizes airflow and storage space. Fans with five sound pressure levels are available.

Condensers TACD are equipped with axial fans from 4 to 22 pcs with diameter 910 mm with maintains-free outbuild rotor. Motors are with thermal protection. The standard body made of galvanized steel with RAL 9010 powder coated structure is durable and has a self-supporting structure. 

Characteristics of condencers TACD:

  • nominal capacity range from 100.1 to 1500.7kW
  • noise pressure from 30 to 65 dBa
  • refrigerant R717 (NH3)
  • block fin tubes: 
    • double
    • aluminium fins  
    • fin spacing:2.0, 2.2, 2.4, 3.0 mm 
    • parameters of block: 40 x 34mm
    • 12 mm stainless steel tubes 
  • Axial fans:
    • from 4 to 22psc with diameter 910mm
    • vertical airflow


  • circuit partition
  • special colours
  • spraying system
  • vibration dampers
  • tiltable fans
  • streamers for an increased air throw
  • diffusers
  • K65-joint for gas coolers



  • spraying system for peak loads in high ambient temperatures
  • low water consumption
  • optimized energy consumption
  • frost protection due to a fully automatic drain system
  • control via TCS controller (max. 4 spraying zones)

Service and cleaning

  • the smooth surfaces of the fins prevent dirt and facilitate cleaning
  • longer operating time
  • optional: tiltable fans

Pad system

  • activation of the humidification system in case of higher performance requirements
  • equable humidification of the entire surface of the length of the water distribution pipe
  • no aerosol output
  • direct installation on the air inlet sides
  • easy replacement of covers due to modular design
