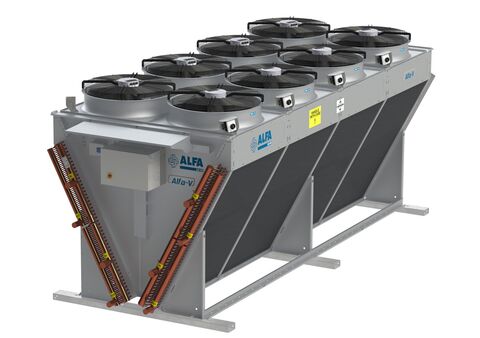

The series of Alfa LU-VE Alfa V condensers (V-type) designed for cooling systems and air conditioning. Models with rated power from 115,00 kW to 1890,00 kW. Alfa V condensers are prepared to work with HFC (except R410A), HFO (ACV series), ammonia (ANV series) refrigerants.

Alfa V condensers are equipped with energy saving, high efficiency EC fans, with a diameter 800, 910 and 1000 mm. They provide high efficiency despite their compact size. Maximum pressure is 33 bar. Evrovent certified.

The innovative block fin tubes ensure excellent heat transfer with minimal refrigerant charge. Depending on the area of application, the condensers are equipped with copper cross-fin tubes (ACV) and stainless steel tubes (ANV).

Standard blade spacing of 2.1 mm:

  • turbo (maximum performance)
  • industrial IF (long-term operation)

The frame design provides high rigidity to protect against vibration and thermal expansion. Housing, brackets and frame made of corrosion-resistant galvanized steel.

ErP compliant AC and EC motors available in five noise levels. External rotor motors, IP54 protection class in accordance with DIN 40050.

Characteristics of Alfa Blue condensers

  • nominal capacity:
    • from 115.00 to 1,850.00 kW
  • air discharge: vertical
  • block fin tubes:
    • aluminium fin
      • turbo fin
      • industrial IF
    • fin spacing: 2.1 mm
    • ACV cross-fin copper tubing
    • smooth stainless steel tubes (ANV)
  • fans:
    • from 2 to 18 with diameter of 800, 910, 1000 mm
    • power supply: AC: 400V/3/50Hz; EC: 380-480V/3/50 Hz
    • five volume levels

Condensers designed according to the rules:

  • material losses reduced to an absolute minimum
  • V angle to optimize airflow
  • low block fin tubes reducing energy consumption of the fans

Advantages of Alpha-V condensers

  • high energy efficiency
  • perfect acoustics (five volume levels)
  • rugged, corrosion-resistant design
  • separate fan sections and removable rings
  • favorable performance to area ratio
  • simple mounting and maintenance (adjustable mounting feet)
  • available with easy-to-clean industrial fins
  • Eurovent certification
