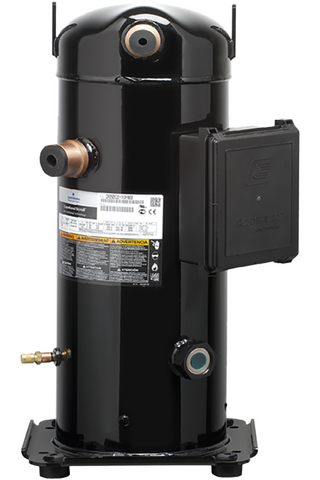

Refrigeration compressor ZP72KCE-TFD

Producer:
Copeland
Line: ZP
Product code: ZP72KCE-TFD
  • Cooling capacity [kW]:
    9.34
  • Displacement [m³/h]:
    11.7
  • Refrigerant:
    R410A
  • Capacity control:
    None
  • Power supply:
    400V/3Ph/50Hz
Ask

Data

Technical data

Displacement
[m³/h]
11.7
Oil charge
[l]
1.66
Oil type
POE RL32-3MAF
Internal free volume
[dm³]
3.9
Net weight
[kg]
45.4

Electrical data and limits

Power supply
400V/3Ph/50Hz
Maximum continuous current
[A]
15.0
Locked rotor amperage
[A]
75.0
Motor resistance main
[Ω]
2.26
Maximum suction pressure
[bar]
29.5
Maximum discharge pressure
[bar]
45.0
Minimum suction temperature
[°C]
-35.0

Dimensions

Suction tube diameter
[inch]
7/8
Discharge tube diameter
[inch]
1/2
Length
[mm]
246
Height
[mm]
455
Width
[mm]
246

Other

Approved refrigerants
R410A
Allowed oil types
POE RL32-3MAF
Capacity control
None
Protection rating
IP21 (IEC34)

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-20
-15
-10
-5
0
5
7
10
12.5
25
8.08
9.96
12.13
14.64
17.53
20.82
22.26
24.56
30
7.59
9.39
11.48
13.89
16.66
19.82
21.20
23.40
25.37
35
7.08
8.81
10.80
13.10
15.74
18.76
20.08
22.19
24.07
40
6.55
8.20
10.09
12.28
14.78
17.65
18.91
20.91
22.71
45
7.55
9.34
11.40
13.77
16.48
17.67
19.57
21.27
50
8.55
10.48
12.69
15.24
16.35
18.14
19.74
55
9.49
11.55
13.91
14.96
16.62
18.12
60
10.31
12.49
13.45
14.98
16.37
65
10.90
11.77
13.16
14.41
65.6
10.69
11.55
12.92
14.16

Power consumption [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-20
-15
-10
-5
0
5
7
10
12.5
25
2.82
2.82
2.84
2.86
2.88
2.92
2.94
2.97
30
3.17
3.18
3.19
3.20
3.22
3.25
3.27
3.29
3.31
35
3.56
3.57
3.58
3.59
3.61
3.63
3.63
3.65
3.66
40
3.99
4.00
4.02
4.03
4.04
4.05
4.06
4.07
4.07
45
4.49
4.51
4.52
4.53
4.54
4.54
4.55
4.55
50
5.07
5.09
5.10
5.10
5.10
5.10
5.10
55
5.73
5.74
5.74
5.74
5.74
5.74
60
6.47
6.48
6.48
6.47
6.46
65
7.31
7.31
7.30
7.29
65.6
7.41
7.41
7.41
7.40

Application range

Legend

  • Suction gas superheating: 10 K
  • Current operating conditions

Dimensions

Downloads

AGL_AC_ST_ZR_ZP_EN_Rev02, Technical documentation, [1.7 MB]
Copeland
03-2025
EN
Safety manual, [252.6 KB]
Copeland
03-2024
PL
TI_Scroll_Designation_EN_Rev00, Technical documentation, [151.2 KB]
Copeland
09-2024
EN
TI_Oil_02_EN_Rev00, Technical documentation, [134.7 KB]
Copeland
08-2024
EN
TI_Scroll_BOM_EN_Rev01, Technical documentation, [435.5 KB]
Copeland
09-2024
EN
TI_Scroll_BOM_Service_EN_Rev01, Technical documentation, [103.2 KB]
Copeland
09-2024
EN
Declaration, [1.4 MB]
Copeland
03-2026
EN
AGL_AC_ST_ZR_ZP_EN_Rev02, Technical documentation, EN, Copeland, 03-2025, [1.7 MB]
Safety manual, PL, Copeland, 03-2024, [252.6 KB]
TI_Scroll_Designation_EN_Rev00, Technical documentation, EN, Copeland, 09-2024, [151.2 KB]
TI_Oil_02_EN_Rev00, Technical documentation, EN, Copeland, 08-2024, [134.7 KB]
TI_Scroll_BOM_EN_Rev01, Technical documentation, EN, Copeland, 09-2024, [435.5 KB]
TI_Scroll_BOM_Service_EN_Rev01, Technical documentation, EN, Copeland, 09-2024, [103.2 KB]
Declaration, EN, Copeland, 03-2026, [1.4 MB]
