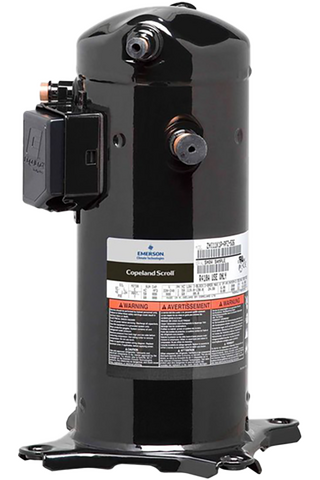

Refrigeration compressor ZHI18K1P-TFM

Producer:
Copeland
Line: ZHI
Product code: ZHI18K1P-TFM
  • Cooling capacity [kW]:
    19.09
  • Heat rejection [kW]:
    24.51
  • Displacement [m³/h]:
    11.7
  • Refrigerant:
    R410A
  • Capacity control:
    None
  • Power supply:
    400V/3Ph/50Hz
Zapytaj

Data

Technical data

Displacement
[m³/h]
11.7
Oil charge
[l]
1.89
Oil type
POE RL32-3MAF
Internal free volume
[dm³]
5.3
Net weight
[kg]
40.9

Electrical data and limits

Power supply
400V/3Ph/50Hz
Maximum continuous current
[A]
16.0
Locked rotor amperage
[A]
101.0
Motor resistance main
[Ω]
1.79
Maximum suction pressure
[bar]
28.0
Maximum discharge pressure
[bar]
46.0

Dimensions

Suction tube diameter
[inch]
7/8
Discharge tube diameter
[inch]
1/2
Injection tube diameter
[inch]
1/2
Length
[mm]
249
Height
[mm]
443
Width
[mm]
245

Other

Approved refrigerants
R410A
Allowed oil types
POE RL32-3MAF
Capacity control
None
Protection rating
IP21 (IEC34)

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Włącz ekonomizer oby policzyć wydajność!

Cooling capacity [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
5
7
10
12.5
15
20
25
17
7.07
8.50
10.14
12.00
14.11
20
6.95
8.39
10.03
11.89
13.98
16.33
25
6.74
8.19
9.82
11.67
13.75
16.07
18.65
30
6.52
7.97
9.60
11.43
13.48
15.77
18.31
21.11
22.31
24.20
35
6.27
7.72
9.35
11.16
13.19
15.44
17.93
20.68
21.86
23.71
25.33
27.03
30.65
40
6.00
7.45
9.07
10.87
12.85
15.06
17.51
20.20
21.35
23.15
24.74
26.39
29.92
33.80
45
7.15
8.75
10.52
12.49
14.65
17.04
19.67
20.80
22.56
24.10
25.71
29.15
32.88
50
6.83
8.41
10.15
12.08
14.20
16.53
19.09
20.18
21.89
23.39
24.96
28.32
31.95
55
8.03
9.75
11.63
13.70
15.97
18.46
19.52
21.18
22.64
24.15
27.38
30.92
60
9.30
11.13
13.15
15.35
17.76
18.78
20.39
21.79
23.25
26.39
29.76
65
10.57
12.52
14.64
16.96
17.94
19.50
20.84
22.24
68
10.19
12.09
14.16
16.41
17.36
18.87

Heat rejection [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
5
7
10
12.5
15
20
25
17
9.67
11.10
12.73
14.58
16.69
20
9.72
11.16
12.79
14.64
16.73
19.08
25
9.80
11.26
12.90
14.74
16.80
19.12
21.70
30
9.88
11.36
13.01
14.84
16.89
19.16
21.69
24.49
25.70
27.60
35
9.97
11.48
13.14
14.97
16.99
19.23
21.71
24.45
25.62
27.47
29.09
30.79
34.44
40
10.07
11.61
13.29
15.12
17.12
19.32
21.75
24.43
25.57
27.36
28.94
30.59
34.12
38.01
45
11.77
13.45
15.28
17.28
19.45
21.84
24.45
25.56
27.31
28.84
30.44
33.85
37.58
50
11.96
13.67
15.49
17.47
19.62
21.96
24.51
25.59
27.29
28.77
30.32
33.65
37.25
55
13.92
15.76
17.73
19.85
22.14
24.63
25.69
27.33
28.77
30.27
33.46
36.96
60
16.06
18.02
20.12
22.36
24.79
25.81
27.41
28.80
30.25
33.35
36.67
65
18.36
20.42
22.62
24.98
25.97
27.53
28.87
30.26
68
18.58
20.61
22.78
25.08
26.05
27.57

Power consumption [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
5
7
10
12.5
15
20
25
17
2.80
2.79
2.78
2.77
2.77
20
2.98
2.98
2.97
2.96
2.95
2.95
25
3.29
3.31
3.30
3.29
3.28
3.27
3.27
30
3.63
3.66
3.67
3.67
3.66
3.65
3.63
3.63
3.63
3.63
35
4.00
4.06
4.09
4.10
4.10
4.08
4.06
4.05
4.04
4.03
4.03
4.03
4.05
40
4.41
4.50
4.56
4.59
4.60
4.59
4.57
4.55
4.54
4.52
4.51
4.50
4.49
4.50
45
5.01
5.09
5.15
5.18
5.18
5.17
5.14
5.13
5.11
5.09
5.08
5.05
5.03
50
5.58
5.71
5.79
5.85
5.87
5.87
5.85
5.83
5.81
5.79
5.77
5.73
5.69
55
6.41
6.54
6.62
6.67
6.68
6.67
6.66
6.64
6.62
6.60
6.54
6.49
60
7.39
7.51
7.59
7.62
7.63
7.62
7.61
7.59
7.56
7.51
7.44
65
8.55
8.66
8.72
8.74
8.74
8.74
8.72
8.70
68
9.26
9.39
9.47
9.50
9.50
9.51

Application range

Legend

  • Suction gas superheating: 10 K
  • Current operating conditions

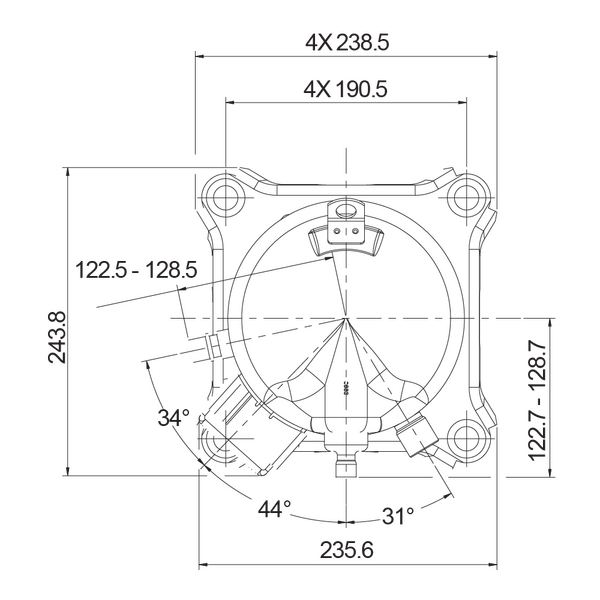

Dimensions

Downloads

Catalogue, [8.2 MB]
Copeland
01-2022
PL
Declaration, [188.6 KB]
Copeland
06-2022
EN
Declaration, [154.6 KB]
Copeland
06-2022
EN
User manual, [1.7 MB]
Copeland
EN
Technical documentation, [796.3 KB]
Copeland
01-2022
EN
Technical documentation, [679.6 KB]
Copeland
07-2015
EN
Folder, [701.5 KB]
Copeland
EN
User manual, [354.4 KB]
Copeland
PL
Folder, [1.5 MB]
Copeland
03-2016
EN
Folder, [178.4 KB]
Copeland
EN
User manual, [1.1 MB]
Copeland
EN
Folder, [413.8 KB]
Copeland
08-2012
EN
Technical documentation, [208.2 KB]
Copeland
EN
Technical documentation, [231.0 KB]
Copeland
08-2015
EN
Technical documentation, [652.2 KB]
Copeland
06-2015
EN
Catalogue, [7.8 MB]
Copeland
01-2023
EN
Catalogue, PL, Copeland, 01-2022, [8.2 MB]
Declaration, EN, Copeland, 06-2022, [188.6 KB]
Declaration, EN, Copeland, 06-2022, [154.6 KB]
User manual, EN, Copeland, [1.7 MB]
Technical documentation, EN, Copeland, 01-2022, [796.3 KB]
Technical documentation, EN, Copeland, 07-2015, [679.6 KB]
Folder, EN, Copeland, [701.5 KB]
User manual, PL, Copeland, [354.4 KB]
Folder, EN, Copeland, 03-2016, [1.5 MB]
Folder, EN, Copeland, [178.4 KB]
User manual, EN, Copeland, [1.1 MB]
Folder, EN, Copeland, 08-2012, [413.8 KB]
Technical documentation, EN, Copeland, [208.2 KB]
Technical documentation, EN, Copeland, 08-2015, [231.0 KB]
Technical documentation, EN, Copeland, 06-2015, [652.2 KB]
Catalogue, EN, Copeland, 01-2023, [7.8 MB]
