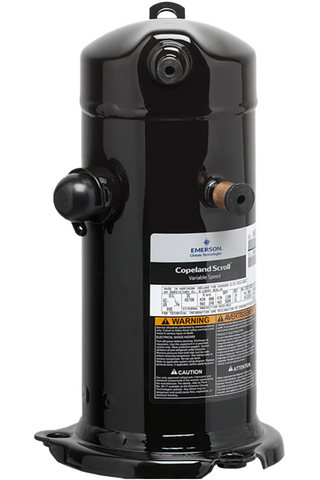

Refrigeration compressor XHV0382P-9X9

Producer:
Copeland
Line: XHV
Product code: XHV0382P-9X9
  • Cooling capacity (maximal speed) [kW]:
  • Heat rejection (maximal speed) [kW]:
  • Displacement [m³/h]:
    6.90
  • Refrigerant:
    R410A
  • Capacity control:
    Inverter (standard)
  • Power supply:
    230V/1Ph/50Hz
Zapytaj

Data

Technical data

Displacement
[m³/h]
6.90
Oil charge
[l]
1.18
Oil type
POE RL32-3MAF
Internal free volume
[dm³]
3.2
Net weight
[kg]
19.5

Electrical data and limits

Power supply
230V/1Ph/50Hz
Maximum continuous current
[A]
27.0
Motor resistance main
[Ω]
0.52
Maximum motor frequency
[Hz]
360
Minimum motor frequency
[Hz]
45
Maximum revolutions per minute
[RPM]
7,200
Minimum revolutions per minute
[RPM]
900
Maximum suction pressure
[bar]
28.0
Maximum discharge pressure
[bar]
52.0

Dimensions

Suction tube diameter
[inch]
3/4
Discharge tube diameter
[inch]
1/2
Length
[mm]
216
Height
[mm]
385
Width
[mm]
194

Other

Approved refrigerants
R410A
Allowed oil types
POE RL32-3MAF
Capacity control
Inverter (standard)
Protection rating
IP21 (IEC34)

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity (maximal speed) [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
15
8.19
10.19
12.66
15.63
19.14
23.22
27.91
20
7.81
9.71
12.06
14.90
18.26
22.17
26.67
25
7.45
9.24
11.47
14.17
17.38
21.13
25.45
30
7.10
8.78
10.89
13.46
16.51
20.09
24.22
32
6.96
8.60
10.66
13.17
16.16
19.67
23.73

Cooling capacity (minimal speed) [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-5
0
5
7
10
12.5
15
20
15
2.22
2.72
20
2.19
2.67
3.26
3.53
3.99
25
2.15
2.61
3.17
3.43
3.85
4.25
4.69
30
2.55
3.07
3.31
3.71
4.08
4.49
5.44

Heat rejection (maximal speed) [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
15
11.67
13.85
16.46
19.54
23.13
27.26
31.95
20
11.59
13.69
16.20
19.18
22.64
26.62
31.16
25
11.54
13.55
15.98
18.84
22.17
26.02
30.40
30
11.52
13.45
15.78
18.53
21.74
25.43
29.66
32
11.52
13.42
15.71
18.41
21.57
25.21
29.37

Heat rejection (minimal speed) [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
15
1.16
1.47
1.75
2.02
2.32
2.67
3.12
20
1.06
1.42
1.73
2.03
2.34
2.69
3.12
25
0.97
1.39
1.74
2.05
2.37
2.72
3.14
30
1.37
1.75
2.09
2.42
2.77
3.16
32
1.36
1.76
2.11
2.44
2.79
3.18

Power consumption (maximal speed) [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
15
3.67
3.85
4.00
4.12
4.20
4.25
4.26
20
3.98
4.19
4.36
4.51
4.61
4.69
4.73
25
4.31
4.54
4.74
4.91
5.05
5.15
5.22
30
4.65
4.92
5.14
5.34
5.50
5.63
5.72
32
4.80
5.07
5.31
5.52
5.69
5.83
5.93

Power consumption (minimal speed) [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-5
0
5
7
10
12.5
15
20
15
0.48
0.42
20
0.53
0.48
0.43
0.41
0.38
25
0.60
0.55
0.50
0.49
0.46
0.44
0.42
30
0.65
0.60
0.59
0.56
0.54
0.53
0.50

Application range

Legend

  • Suction gas superheating: 10 K, 7200 RPM
  • Suction gas superheating: 10 K, 3600 RPM
  • Suction gas superheating: 10 K, 900 RPM
  • Current operating conditions
