Reciprocating compressor NUT60CAb

Producer:
Cubigel Compressors
Line: U
Product code: NUT60CAb
  • Cooling capacity [W]:
    473
  • Cylinder volume [cm³]:
    6
  • Refrigerant:
    R290
  • Applications:
    LBP
  • Power supply:
    230V/1Ph/50Hz
Zapytaj

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
226
Nominal cooling capacity (ASHRAE)
[kcal/h]
261
Displacement
[m³/h]
1.08
Cylinder volume
[cm³]
6
Cylinder bore
[mm]
22.0
Cylinder stroke
[mm]
16.0
Oil charge
[l]
0.20
Oil type
ISO VG 10 ESTER
Net weight
[kg]
9.31

Electrical data and limits

Power supply
220-240V 50Hz ~1
Maximum continuous current
[A]
1.6
Locked rotor amperage
[A]
7.1
Motor resistance main
[Ω]
13.25
Motor resistance start
[Ω]
15.70
Electrical motor type
RSCR
Type of torque
LST
Maximum ambient temperature
[°C]
43

Dimensions

Suction / Service tube diameter (1)
[mm]
6.2
Discharge tube diameter (2)
[mm]
4.9
Service / Suction tube diameter (2)
[mm]
6.2

Other

Approved refrigerants
R290
Expansion device
Capillary tube
Compressor cooling
Fan
Approvals
VDE
Applications
LBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-40
-35
-30
-25
-20
-15
-10
40
117
159
211
272
342
421
511
45
106
144
191
248
313
388
473
50
95
129
172
224
285
355
436
55
115
153
200
256
322
398
60
134
176
228
289
361

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-40
-35
-30
-25
-20
-15
-10
40
115
128
141
155
168
182
196
45
113
128
143
158
173
189
205
50
111
127
144
161
179
196
214
55
127
146
165
184
203
223
60
147
168
189
210
231

Application range

Legend

  • Current operating conditions

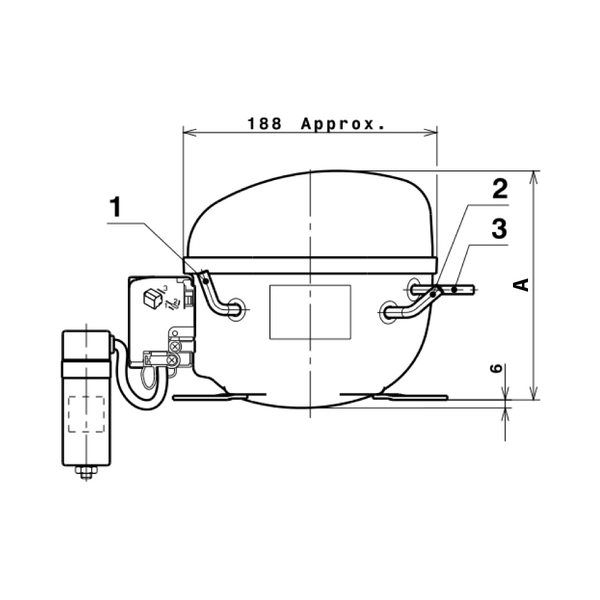

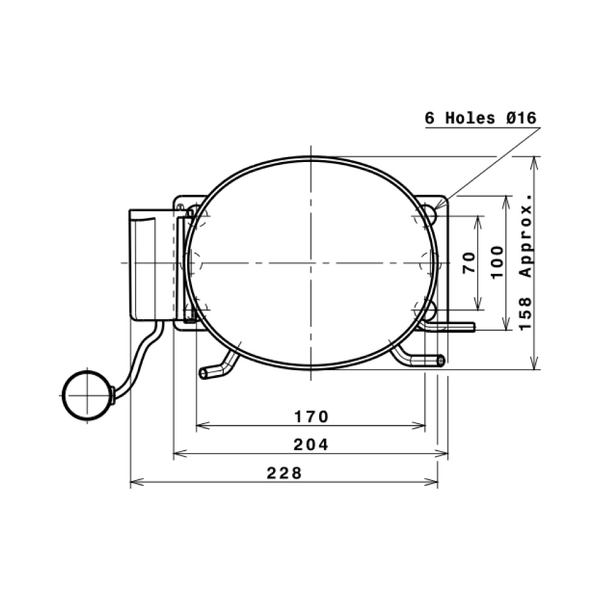

Dimensions

Dimension A
[mm]
173,5
