Reciprocating compressor GPY14RAa

Producer:
Cubigel Compressors
Line: P
Product code: GPY14RAa
  • Cooling capacity [W]:
    697
  • Cylinder volume [cm³]:
    14.32
  • Refrigerant:
    R134a
  • Applications:
    HMBP
  • Power supply:
    230V/1Ph/50Hz
Ask

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
1,161
Nominal cooling capacity (ASHRAE)
[kcal/h]
1,190
Displacement
[m³/h]
2.58
Cylinder volume
[cm³]
14.32
Cylinder bore
[mm]
29.4
Cylinder stroke
[mm]
21.1
Oil charge
[l]
0.40
Oil type
ISO VG 32 ESTER
Net weight
[kg]
11.94

Electrical data and limits

Power supply
220-240V 50Hz ~1
Maximum continuous current
[A]
4.9
Locked rotor amperage
[A]
17.8
Motor resistance main
[Ω]
4.93
Motor resistance start
[Ω]
11.70
Electrical motor type
CSIR
Type of torque
HST
Maximum ambient temperature
[°C]
43

Dimensions

Suction / Service tube diameter (1)
[mm]
8.1
Discharge tube diameter (3)
[mm]
6.5
Service / Suction tube diameter (2)
[mm]
8.1

Other

Approved refrigerants
R134a
Expansion device
Capillary tube, Expansion valve
Compressor cooling
Fan
Approvals
CCC, VDE
Applications
HMBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-25
-20
-15
-10
-5
0
5
10
40
341
455
593
756
943
1,155
1,392
1,653
45
315
418
545
697
873
1,074
1,301
1,553
50
289
381
497
638
803
994
1,211
1,453
55
263
345
450
579
734
914
1,120
1,354
60
402
521
664
834
1,030
1,254
65
463
595
754
940
1,154

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-25
-20
-15
-10
-5
0
5
10
40
283
314
348
384
423
464
508
554
45
290
325
363
404
447
492
540
591
50
297
336
379
423
471
521
573
628
55
303
347
394
443
495
549
606
665
60
409
463
519
577
638
702
65
483
543
606
671
739

Application range

Legend

  • Current operating conditions

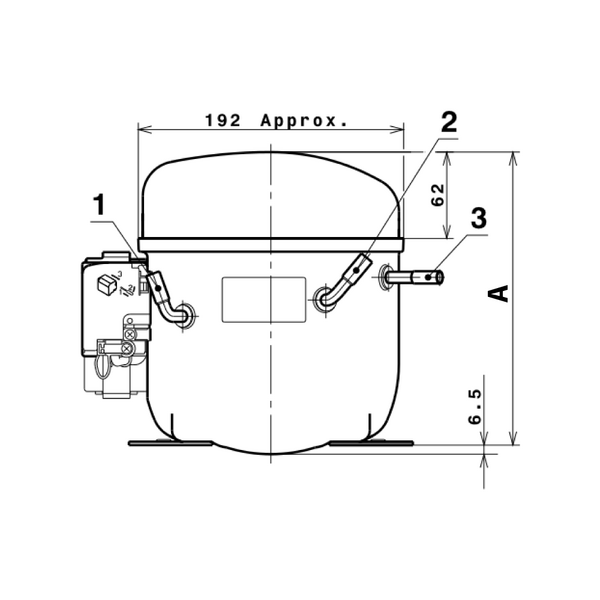

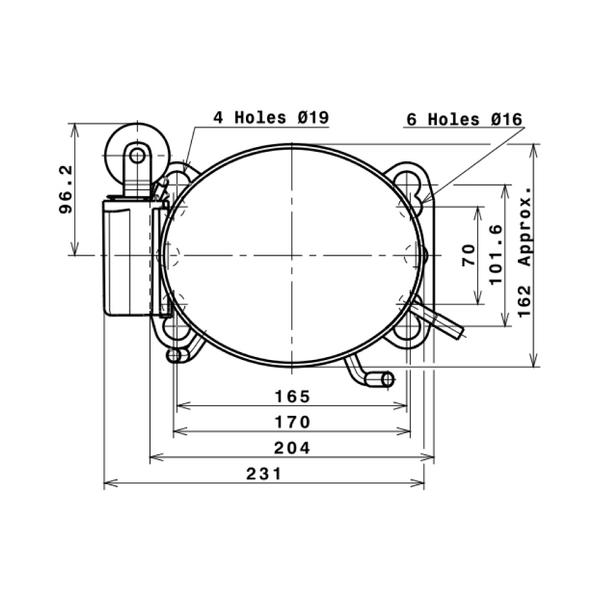

Dimensions

Dimension A
[mm]
210,5
