Reciprocating compressor HYS45YH81a

Producer:
Cubigel Compressors
Line: HY
Product code: HYS45YH81a
  • Cooling capacity [W]:
    79
  • Cylinder volume [cm³]:
    4.5
  • Refrigerant:
    R134a
  • Applications:
    LBP
  • Power supply:
    230V/1Ph/50Hz
Zapytaj

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
92
Nominal cooling capacity (ASHRAE)
[kcal/h]
108
Displacement
[m³/h]
0.810
Cylinder volume
[cm³]
4.5
Net weight
[kg]
7.1

Electrical data and limits

Power supply
220-240V 50Hz ~1
Electrical motor type
RSIR

Other

Approved refrigerants
R134a
Expansion device
Capillary tube
Compressor cooling
Static
Applications
LBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-35
-30
-25
-20
-15
-10
55
37
56
79
108
142
182

No data for the given parameters.

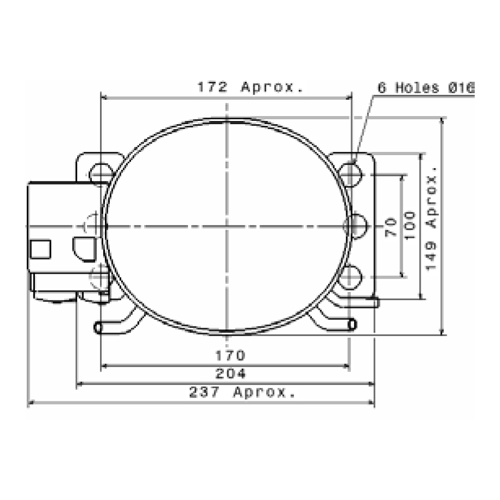

Dimensions

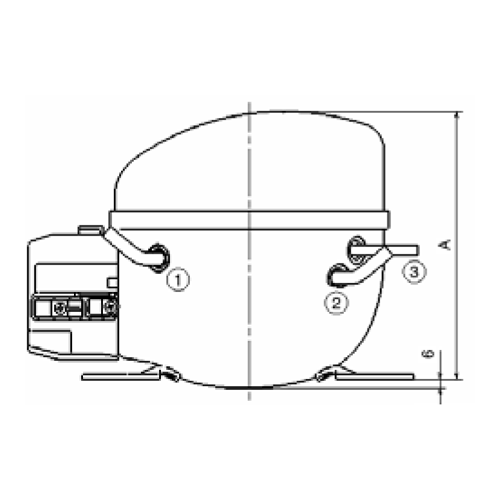

Dimension A
[mm]
168
