Reciprocating compressor NBC22RA

Producer:
Cubigel Compressors
Line: B
Product code: NBC22RA
  • Cooling capacity [W]:
    139
  • Cylinder volume [cm³]:
    2.2
  • Compressor cooling:
    Fan
  • Applications:
    HMBP
  • Power supply:
    230V/1Ph/50Hz
Ask

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
222
Nominal cooling capacity (ASHRAE)
[kcal/h]
228
Displacement
[m³/h]
0.396
Cylinder volume
[cm³]
2.2
Cylinder bore
[mm]
17.2
Cylinder stroke
[mm]
9.4
Oil charge
[l]
0.12
Oil type
ISO VG 32 ESTER
Net weight
[kg]
5.2

Electrical data and limits

Power supply
220-240V 50/60Hz ~1
Maximum continuous current
[A]
1.2
Locked rotor amperage
[A]
5.8
Motor resistance main
[Ω]
24.80
Motor resistance start
[Ω]
14.90
Electrical motor type
CSIR
Type of torque
HST
Maximum ambient temperature
[°C]
43

Dimensions

Suction tube diameter (1)
[mm]
6.1
Discharge tube diameter (3)
[mm]
5.1
Service tube diameter (2)
[mm]
6.1

Other

Approved refrigerants
R290
Expansion device
Capillary tube, Expansion valve
Compressor cooling
Fan
Approvals
VDE
Applications
HMBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-25
-20
-15
-10
-5
0
5
10
40
66
90
120
153
191
233
280
332
45
60
82
108
139
174
214
258
307
50
54
73
96
124
157
194
236
282
55
85
110
140
174
213
257
60
96
123
155
191
233

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-25
-20
-15
-10
-5
0
5
10
40
78
83
88
92
95
98
100
102
45
79
85
91
96
100
104
108
111
50
80
87
94
100
106
111
115
119
55
97
104
111
117
122
127
60
109
116
123
130
136

Application range

Legend

  • Current operating conditions

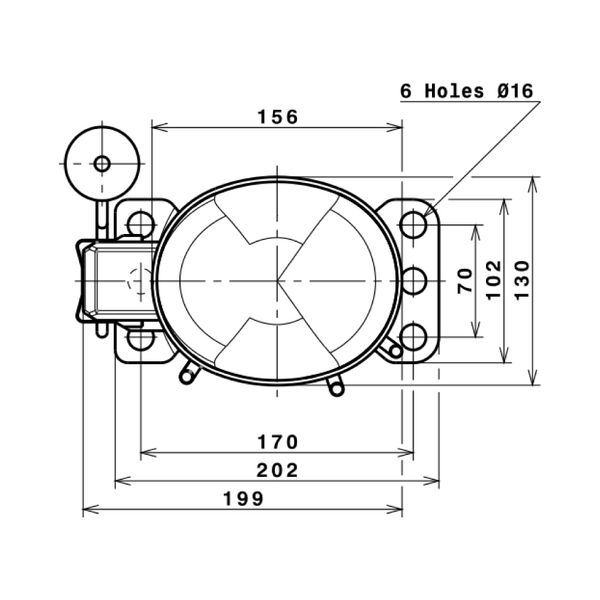

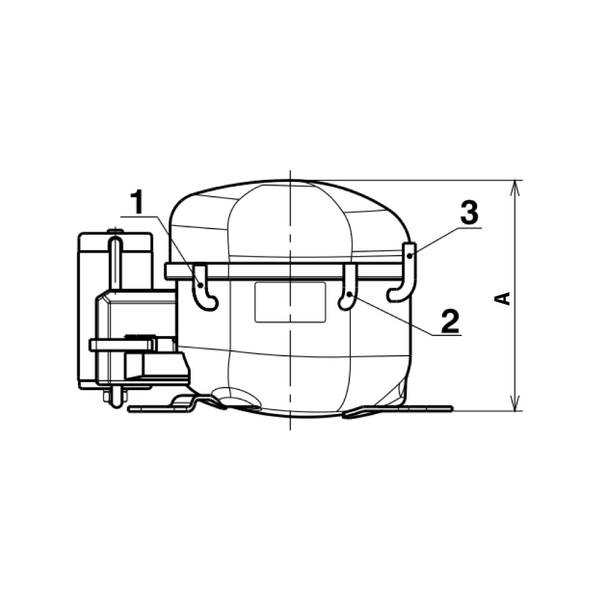

Dimensions

Dimension A
[mm]
145
