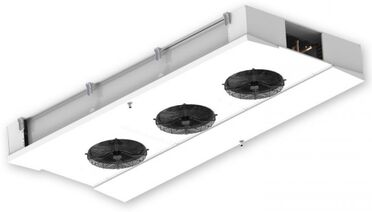

We are pleased to offer a series of Thermofin ceiling air coolers with two-sided discharge, for use in industrial refrigeration systems, such as logistic centers, fruits and vegetables storage. Flat coolers with a nominal capacity from 3.3 to 93.4 kW, equipped with axial fans with diameter from 400 to 630 mm. Adapted to work with the natural refrigerant R717 (NH3). The large heat exchange surface minimizes temperature spread and reduces the drying of warehouse goods, ensuring long product freshness. The individual design of each device guarantees the optimization of use in refrigeration systems. Airflow units from 2174 to 44146 m³/h.

TADN thermofin air coolers can be equipped with double insulated, hinged drip trays made of AlMg3, powder coated. Installation of a polyamide condensate drain is available. Optional defrost: ele ctric (heaters in block and tray), hot gas, glycol or water. Standard body made of galvanized steel with RAL 9010 powder coated housing that is durable and has a self-supporting structure.

Characteristics of TADN air coolers

  • nominal capacity: from 3.3 to 93.4 kW
  • air flow: from 2174 to 44146 m³/h
  • refrigerant: R717 (NH3)
  • block fin tubes:
    • aluminium fins
    • fin spacing: 4.0; 7.0; 10.0 mm
    • parameters of block: 50 x 50 mm
    • tubes 16 mm, stainless steel

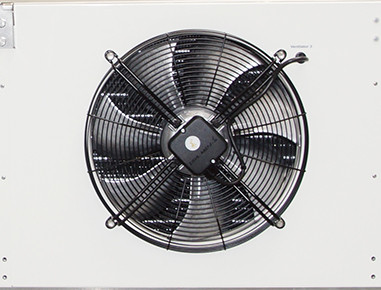

  • axial fans:
    • AC or EC (optionally) controlled by 0-10V or 4-20 mA signals or modbus signal
    • from 1 to 4 pcs with diameter from 400 to 630 mm
    • two-way air discharge (fans force air through the block fin tubes to two sides)
    • motors with external rotor with protection class IP54 (optional IP55 for EC)
    • motors equipped with thermal protection on the winding

Accessories for air coolers:

  • heating coil - air drying
  • defrosting (electric, hot gas, glycol, water types)
  • double insulated tray
  • legs (feet)

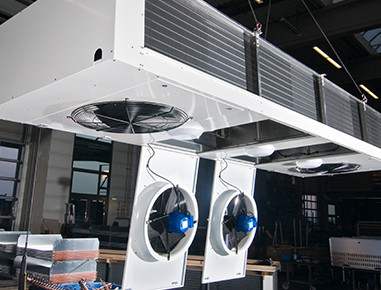

  • tiltable fans (different angles)
  • CIP system for cleaning
  • fan wiring
  • wireless fan control
  • heated tray to prevent condensation
  • UV-C system



  • functions for tilting the fans and defrost trays allow easy access for cleaning inside the units

Condensate pump

  • condensate pumped to a drain above which a cold store is not installed
  • no disturbing condensate line in the ceiling area
  • easy coolericleaning

Optimized energy consumption

  • the use of EC fans
  • highly efficient speed control
  • adjustment of air volume flow depending on cooling load
