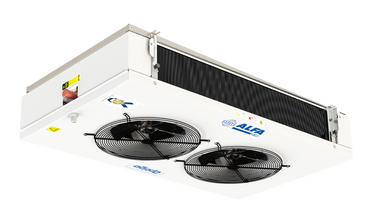

The range of Alfa LU-VE Optigo SFMD commercial air coolers with dual air discharge, designed for use in small to medium-sized cold rooms and freezer rooms. Their low noise level makes them particularly suitable for temperature-controlled working and processing areas. These flat-type coolers are compatible with refrigerants from safety groups A1 and A2L, and offer nominal cooling capacities ranging from 1.47 kW to 14.57 kW under SC2 conditions. Standard models are equipped with energy-efficient EC fans (Ø 350 mm), which blow air through the finned coil block. The maximum allowable design pressure is 24 bar. High performance levels, in compliance with European and international standards, are certified by Eurovent.

Optigo SFMD Air Coolers Characteristics:

  • Refrigerants: Suitable for A1 and A2L safety groups
  • Nominal cooling capacity: From 1.47 kW to 14.57 kW (SC2 conditions)
  • Air temperature range in the cold room: –25°C to +30°C
  • Refrigerant temperature range: –40°C to +20°C
  • Coil block:
    • Aluminum fins
    • Fin spacing options: 3.0; 4.5; 7.0 mm
    • Internally grooved copper tubes
  • Fans:
    • Quantity: 1 to 4 fans blowing through the coil block
    • Diameter: 350 mm
    • Power supply: 230V / 1~ / 50 Hz
    • Energy-efficient EC motors
      • Two fan speeds:
        • H = High Speed (1100 RPM)
        • L = Low Speed (900 RPM)
  • Defrost Options:
    • Air defrost
    • Electric defrost

Optigo SFMD Air Cooler Features:

  • Innovative coil block made of internally grooved copper tubes and aluminum fins with enhanced surface cuts, improving heat transfer efficiency and performance — even under frosted conditions
  • Corrosion-resistant casing, made of double epoxy-coated aluminum, with metal fan guards for added durability
  • Dual-opening drip tray design enables easy condensate drainage and simplifies maintenance
  • Each heat exchanger is leak-tested with dry air and delivered pre-charged with dry air to ensure integrity and readiness for installation.

Optigo SFMD Air Coolers Optional Equipment:

  • Coil protection: Aluminum fins with pre-coating (AP)
  • Drip tray insulation (IS)
  • Drip tray heater (HD)
