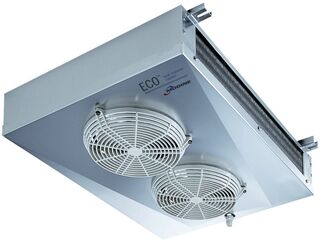

The range of ECO Modine MIC-W glycol air coolers with two-way air flow. They are designed for application in small rooms and refrigeration furniture. 8 compact ceiling-mounted models with nominal capacity from 0,12 to 3,31 kW, they are equipped with AC fans with a diameter of 230 mm. Maximum operating temperature: up to +50°C. EC fans available as option.

MIC-W air coolers are the perfect solution for cooling rooms with low ceilings and food processing rooms. They are equipped with high-performance block fin tubes made of specially profiled aluminium ribs and smooth copper tubes. Models with Standard Electric Defrost (ED) are equipped with stainless steel heaters with vulcanized connections. On request, they can be equipped with non-standard coils and defrost as well as different fan motor options.

Options and special versions:

heat exchanger with copper fins

EC motor

MIC-W air coolers characteristics:

  • nominal capacity range: from 0,12 to 3,31 kW
  • air flow: from 460 to 2 300 m3/h
  • block fin tubes
    • corrugated aluminium slats
    • double fin spacing: 4,5/9,0 mm
    • smooth copper tubes: Ø3/8’’
    • block parameters: 25 × 25 mm
  • fans
    • from 1 to 5 with diameter 230 mm
    • power supply: 230V/1~/50Hz
    • operating temperature ranges: from -40°C to +40°C (+50°C for EC)
    • optional EC

MIC-W advantages:

  • durable body made of polished aluminium alloy
  • high corrosian resistant
  • high-efficiency block fin tubes
  • electrical defrost (ED version)
  • thermal protection
  • stainless steel heaters
  • fan motors and heaters connected in separate junction boxes (protection class IP 54)
  • special versions on request
