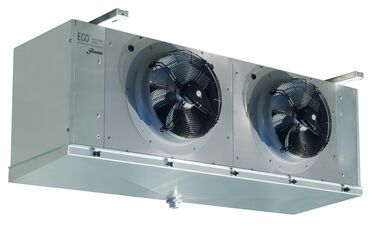

A series of ECO ICE-W glycol air coolers with one-way air supply, dedicated to use in large, industrial refrigerator for fresh or frozen products storage. 104 models in the nominal power range between 1.66 – 161.39 kW.

Cubic celling coolers are equipped with AC fans with diameter 450, 560 and 630 mm. Maximum operating temperature: + 70°C (optional EC fans).

The glycol air coolers ICE-W are equipped with bipolar motor. It allows to use a high or low fan speed and thus obtain normal or reduced ventilation with reduced noise level. The coolers are equipped with high-efficiency block fin tubes made of profiled aluminum fins and smooth copper tubes. The heaters power ensures defrosting and minimum energy consumption. Models can be equipped with non-standard fin blocks, defrost and various fan motor options on request.

ICE-W characteristic:

  • nominal capacity range:
    • from 1,66 to 161,39 kW (ethylene glycol 35%, tj,in=-8°C, tj,out=-4°C, ta=0°C)
  • air flow: from 5 460 to 76 525 m3/h
  • block fin tubes:
    • fin spacing 6; 8; 10; 12 mm
    • smooth copper tubes ø1/2”
    • parameters of block: 37,5 х 32,5 mm
  • fans:
    • 1 to 5 pcs with diameter 450, 560 or 630 mm
    • power supply: 400B/3/50Hz
      • temperature range from -40 to +45 °C (ø450 mm)
      • temperature range from -40 to +50 °C (ø560 mm)
      • temperature range from -40 to +60 °C (ø630 mm)
    • additional EC-fans
    • bipolar motors

ICE-W advantages:

  • durable body made of polished aluminium alloy
  • high corrosian resistant
  • high-efficiency block fin tubes
  • bipolar motors
  • thermal protection
  • fan motors and heaters connected in separate junction boxes (protection class IP 54)
  • special versions on request

ECO ICE-W glycol air coolers applications:

  • high storage temperature (≥ -15°C):
  • fin spacing 6 mm
  • low storage temperature (≥ - 35°C):
  • increased fin spacing 8; 10; 12 mm
  • electrical defrost recommended
