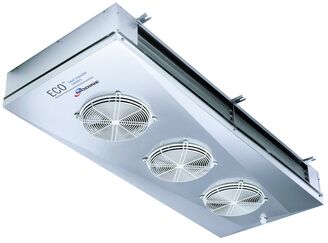

A series of ECO GDE-W glycol air coolers with two-way air supply, dedicated to use in small refrigerator with limited height for fresh or frozen products storage. 48 models in the nominal power range between 0.43 – 23.71 kW.

Flat celling coolers are equipped with AC axial fans with diameter 315 and 350 mm. Maximum operating temperature: + 60°C (optional EC fans).

The coolers are equipped with high-efficiency block fin tubes made of profiled aluminum fins and smooth copper tubes. Models can be equipped with non-standard fin blocks, defrost and various fan motor options on request.

GDE-W characteristic:

  • nominal capacity range:
    • from 0,43 to 23,71 kW (ethylene glycol 35%, tj,in=-8°C, tj,out=-4°C, ta=0°C)
  • air flow: from 1 400 to 12 150 m3/h
  • block fin tubes:
    • fin spacing 3; 4; 7 mm
    • smooth copper tubes ø3/8”
    • parameters of block: 37,5 х 32,5 mm
  • fans:
    • 1 to 6 pcs with diameter 315 and 350 mm
    • power supply: 230B/1/60Hz
      • temperature range from -40 to +30 °C (ø315 mm)
      • temperature range from -40 to +50 °C (ø350 mm)
    • additional EC-fans

GDE-W advantages:

  • durable body made of polished aluminium alloy
  • new mounting brackets
  • high-efficiency block fin tubes
  • thermal protection
  • fan motors and heaters connected in separate junction boxes (protection class IP 54)
  • build-in internal drip tray
  • EC fans - an option for whole range GCE air coolers
  • parameters – 37,5 х 32,5 with pipe 3/8”
  • special versions on request

ECO GDE-W glycol air coolers applications:

  • high storage temperature (≥ +5°C):
    • fin spacing 3 mm
  • medium storage temperature (≥ +1°C):
    • fin spacing 4mm
  • low storage temperature (≥ - 25°C):
    • fin spacing 7 mm
    • electrical defrost recomended
