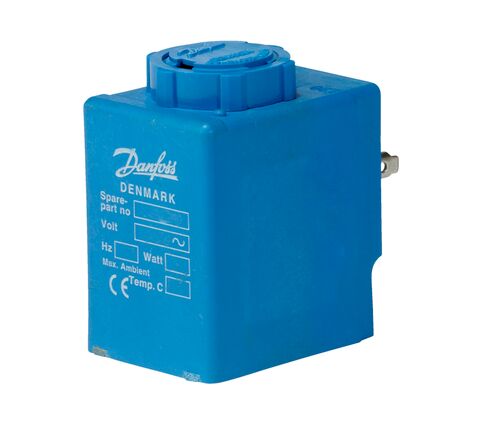

Coil 042N7512

Producer:
Danfoss
Product code: 042N7512
  • Compatible lines:
    EV
  • Power supply:
    115 V AC (50 Hz)
  • Power consumption:
    9 W AC (50 Hz)
  • Motor coil type:
    Pulse
  • Electrical connection type:
    Spade connectors
Zapytaj

Data

Electrical data

Power supply
115 V AC (50 Hz)
Power consumption
9 W AC (50 Hz)
Motor coil type
Pulse
Electrical connection type
Spade connectors
Electrical connection size
6,3 mm x 0,8 mm

Technical data

Coil design type
BA115A
Coil fastening
Nut and snap
Actuator inner diameter
[mm]
13.5
Protection rating
IP00
Net weight
[kg]
0.15
Gross weight
[kg]
0.17

Others

Product codes
042N7512
Compatible lines
EV
Related models
EV (210B, 220B (6-50, 65-100), 310B)
Ambient temperature range
-40 °C — 40 °C
Shipped mounting
Nut and snap fastener

Dimensions

Downloads

Technical documentation, [12.7 MB]
Danfoss
11-2022
EN
Technical documentation, [12.9 MB]
Danfoss
02-2023
EN
Technical documentation, [4.1 MB]
Danfoss
05-2021
EN
Technical documentation, [14.8 MB]
Danfoss
07-2021
EN
Folder, [861.7 KB]
Danfoss
08-2021
EN
Technical documentation, EN, Danfoss, 11-2022, [12.7 MB]
Technical documentation, EN, Danfoss, 02-2023, [12.9 MB]
Technical documentation, EN, Danfoss, 05-2021, [4.1 MB]
Technical documentation, EN, Danfoss, 07-2021, [14.8 MB]
Folder, EN, Danfoss, 08-2021, [861.7 KB]
