Fan FN050-VDK.4I.V7P1 - FN050-VDK-4I-V7P1

Producer:
Ziehl-Abegg
Product code: FN050-VDK-4I-V7P1
  • Air flow direction:
    Suction
  • Fan power supply:
    400V/3Ph/50Hz
  • Fan diameter [mm]:
    500
  • Air flow [m³/h]:
    9,200
Zapytaj

Data

Technical data

Air flow direction
Suction
Fan diameter
[mm]
500
Air flow ¹
[m³/h]
9,200
Minimal working temperature
[°C]
-40
Maximal working temperature
[°C]
70

Electrical data

Fan power supply
400V/3Ph/50Hz
Fan motor type
AC
Fan current
[A]
1.45
Fans power
[W]
840
Fan speed
[RPM]
1,340
Protection rating
IP54

Acoustic data

Acoustic power
[dB(A)]
76.0

Other data

Product codes
140056, 176542
Net weight
[kg]
13.3

Connection type: star

Air flow ¹
[m³/h]
7,500
Fan current
[A]
0.96
Fan power
[W]
540
Fan speed
[RPM]
940
Acoustic power
[dB(A)]
73.0

Connection type: delta

Air flow ¹
[m³/h]
9,200
Fan current
[A]
1.45
Fan power
[W]
840
Fan speed
[RPM]
1,340
Acoustic power
[dB(A)]
76.0

1 For pressure Δp = 0 Pa.

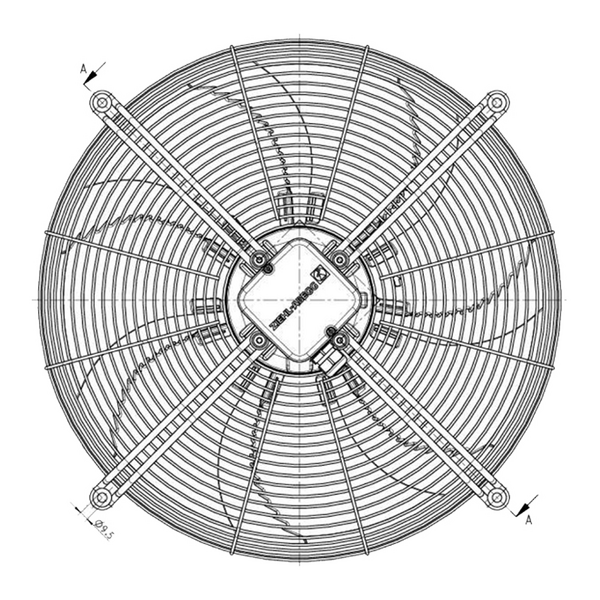

Dimensions

Downloads

Technical documentation, [610.1 KB]
Ziehl-Abegg
02-2013
EN
Technical documentation, EN, Ziehl-Abegg, 02-2013, [610.1 KB]
