Fan FN045-VDK.2F.V7P2

Producer:
Ziehl-Abegg
Product code: FN045-VDK-2F-V7P2
  • Air flow direction:
    Suction
  • Fan power supply:
    400V/3Ph/50Hz
  • Fan diameter [mm]:
    450
  • Air flow [m³/h]:
    5,550
Ask

Data

Technical data

Air flow direction
Suction
Fan diameter
[mm]
450
Air flow ¹
[m³/h]
5,550
Minimal working temperature
[°C]
-40
Maximal working temperature
[°C]
70

Electrical data

Fan power supply
400V/3Ph/50Hz
Fan motor type
AC
Fan current
[A]
0.64
Fans power
[W]
350
Fan speed
[RPM]
1,280
Protection rating
IP54

Acoustic data

Acoustic power
[dB(A)]
71.0

Other data

Product codes
152824
Net weight
[kg]
6.6

Connection type: star

Air flow ¹
[m³/h]
4,450
Fan current
[A]
0.35
Fan power
[W]
220
Fan speed
[RPM]
970
Acoustic power
[dB(A)]
66.0

Connection type: delta

Air flow ¹
[m³/h]
5,550
Fan current
[A]
0.64
Fan power
[W]
350
Fan speed
[RPM]
1,280
Acoustic power
[dB(A)]
71.0

1 For pressure Δp = 0 Pa.

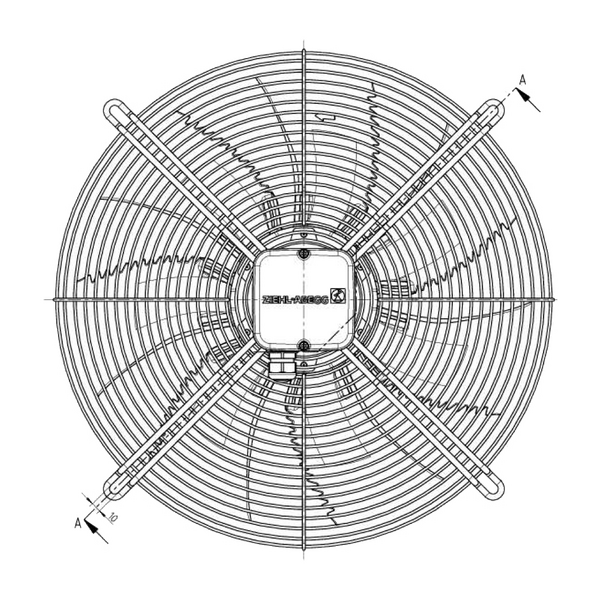

Dimensions

Downloads

Technical documentation, [894.7 KB]
Ziehl-Abegg
02-2013
EN
Technical documentation, EN, Ziehl-Abegg, 02-2013, [894.7 KB]
