Log in to download this file

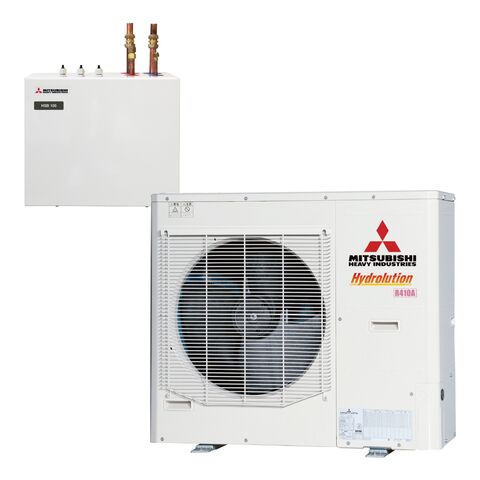

Hydrolution heat pumps Keymark certificate (FDCW100VNX-A)
Certificate, [136.9 KB]
Log in to download this file
1 Ambient temperature: 7°C DB (6°C WB), water temperature: 30°C (inlet) / 35°C (outlet).
2 Ambient temperature: 7°C DB (6°C WB), water temperature: 40°C (inlet) / 45°C (outlet).
3 Ambient temperature: 35°C DB, water temperature: 12°C (inlet) / 7°C (outlet).
4 Ambient temperature: 35°C DB, water temperature: 23°C (inlet) / 18°C (outlet).
5 In medium-temperature installations, for a water temperature of 55°C, in average climate.
6 In medium-temperature installations, for a water temperature of 55°C with a connected room temperature sensor, in average climate.
7 In low-temperature installations, for a water temperature of 35°C, in average climate.
8 In low-temperature installations, for a water temperature of 35°C with a connected room temperature sensor, in average climate.
9 EN ISO 3744, measured at LNE lab at 1m.
| A | Service valve connection (gas side) | ⌀ 15,88 (5/8") |
| B | Service valve connection (liquid side) | ⌀ 9,52 (3/8") |
| C | Pipe/cable draw-out hole |
| D | Drain discharge hole | ⌀ 20 x 3 |
| E | Anchor bolt hole | M10 x 4 |
| F | Pipe/cable draw-out hole | ⌀ 30 (front) ⌀ 45 (side) ⌀ 50 (back) |

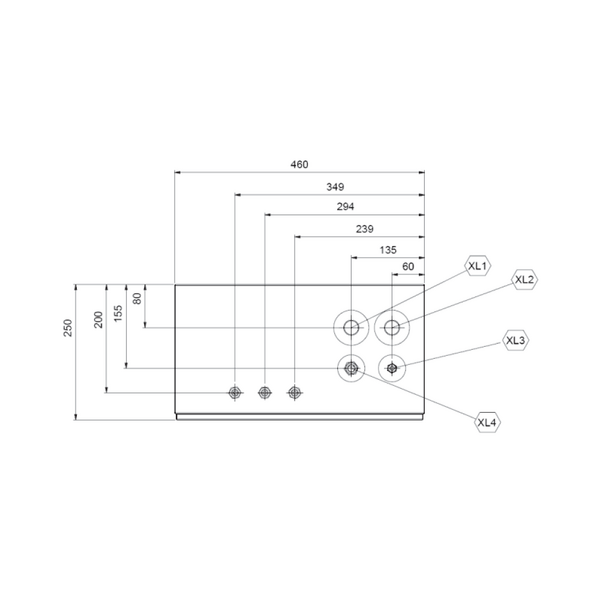

| XL1 | Climate system supply | ⌀ 28 mm |
| XL2 | Climate system return | ⌀ 28 mm |
| XL3 | Connection, liquid line | 3/8” |
| XL4 | Connection, gas line | 5/8” |
