0 Possibility to choose power supply type due to supply's peak power

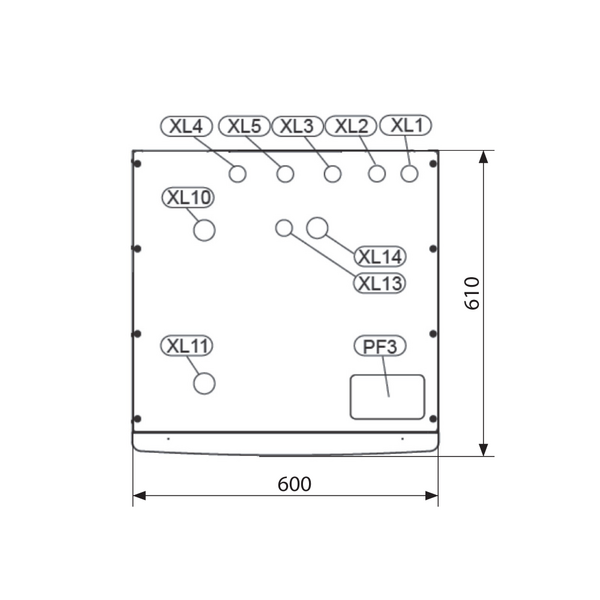

| XL1 | Connection, heating medium supply | ⌀ 22 mm |
| XL2 | Connection, heating medium return | ⌀ 22 mm |
| XL3 | Connection, cold water | ⌀ 22 mm |
| XL4 | Connection, hot water | ⌀ 22 mm |
| XL5 | Connection, circulation | ⌀ 15 mm |
| PF3 | Serial number plate |
| XL10 | Connection, cooling | ⌀ 22 mm |
| XL11 | Connection, safety group, manometer | ⌀ 22 mm |
| XL13 | Connection, liquid cooling medium | ⅜” |
| XL14 | Connection, gas cooling medium | ⅝” |
| XL18 | Connection, return from an additional heat source | ⌀ 22 mm |
| XL19 | Connection, supply of an additional heat source | ⌀ 22 mm |
