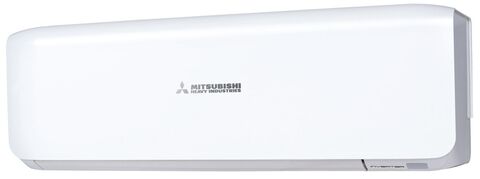

Wall mounted air conditioner SRK20ZS-W

Producer:
Mitsubishi Heavy Industries
Line: SRK ZS-W
Product code: SRK20ZS-W
  • Cooling capacity [kW]:
    2.00
  • Heating capacity [kW]:
    3.00
Zapytaj

Data

Technical data

Cooling capacity
[kW]
2.00
Heating capacity
[kW]
3.00
Air flow (cooling mode)
[m³/min]
9,3 / 7,0 / 5,9 / 5,0
Air flow (heating mode)
[m³/min]
10,0 / 8,5 / 6,5 / 5,9

Acoustic data

Acoustic power (cooling mode)
[dB(A)]
48.0
Acoustic power (heating mode)
[dB(A)]
50.0
Acoustic pressure (cooling mode)
[dB(A)]
34 / 25 / 22 / 19
Acoustic pressure (heating mode)
[dB(A)]
36 / 29 / 23 / 19

Dimensions

Height
[mm]
290
Width
[mm]
870
Depth
[mm]
230
Net weight
[kg]
9.5

Other

Air filter
Anti-allergen, Photocatalytic / washable / deodorising filter
Color
White

Dimensions

Dimensions

A. Gas connection
[mm]
9.52
A. Gas connection
[inch]
3/8
B. Liquid connection
[mm]
6.35
B. Liquid connection
[inch]
1/4



C. Hole on wall for right rear piping ⌀65
D. Hole on wall for left rear piping ⌀65
E. Drain hose V16
F. Outlet piping

Related products

Downloads

RLF012A102, User manual, [8.8 MB]
Mitsubishi Heavy Industries
05-2019
PL
User manual, [3.7 MB]
Mitsubishi Heavy Industries
05-2023
PL
PJZ012A176K, User manual, [5.2 MB]
Mitsubishi Heavy Industries
06-2018
PL
PJZ012A235L, User manual, [6.0 MB]
Mitsubishi Heavy Industries
03-2024
PL
Libraries, [653.3 KB]
Mitsubishi Heavy Industries
Libraries, [2.3 MB]
Mitsubishi Heavy Industries
RLF012A102, User manual, PL, Mitsubishi Heavy Industries, 05-2019, [8.8 MB]
User manual, PL, Mitsubishi Heavy Industries, 05-2023, [3.7 MB]
PJZ012A176K, User manual, PL, Mitsubishi Heavy Industries, 06-2018, [5.2 MB]
PJZ012A235L, User manual, PL, Mitsubishi Heavy Industries, 03-2024, [6.0 MB]
Libraries, , Mitsubishi Heavy Industries, [653.3 KB]
Libraries, , Mitsubishi Heavy Industries, [2.3 MB]
