Wall mounted air conditioner SKM35ZSP-W

Producer:
Mitsubishi Heavy Industries
Line: SKM ZSP-W
Product code: SKM35ZSP-W
  • Cooling capacity [kW]:
    3.50
  • Heating capacity [kW]:
    4.50
Ask

Data

Technical data

Cooling capacity
[kW]
3.50
Heating capacity
[kW]
4.50
Air flow (cooling mode)
[m³/min]
9,0 / 7,5 / 5,0
Air flow (heating mode)
[m³/min]
8,5 / 7,0 / 6,0

Acoustic data

Acoustic power (cooling mode)
[dB(A)]
58.0
Acoustic power (heating mode)
[dB(A)]
58.0
Acoustic pressure (cooling mode)
[dB(A)]
44 / 37 / 25
Acoustic pressure (heating mode)
[dB(A)]
42 / 37 / 30

Dimensions

Height
[mm]
267
Width
[mm]
783
Depth
[mm]
210
Net weight
[kg]
7.5

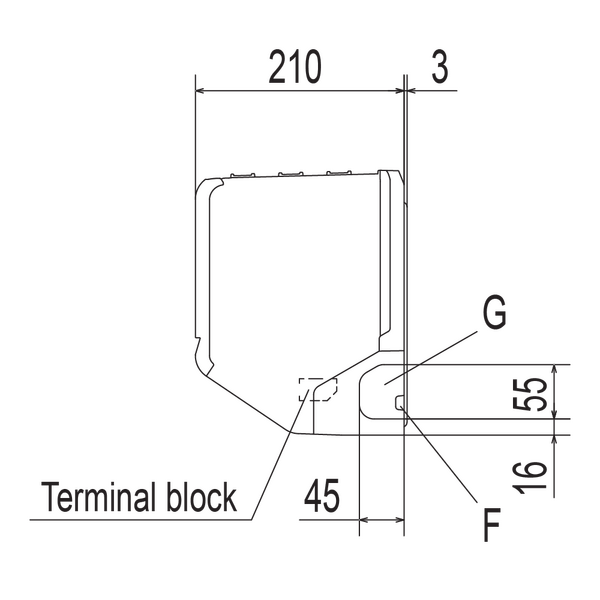

Dimensions

Dimensions

A. Gas connection
[mm]
9.52
A. Gas connection
[inch]
3/8
B. Liquid connection
[mm]
6.35
B. Liquid connection
[inch]
1/4



C. Hole on wall for right rear piping ⌀65
D. Hole on wall for left rear piping ⌀65
E. Drain hose V16
F. Outlet piping (on both sides)

Downloads

RLC012A101C, User manual, [4.7 MB]
Mitsubishi Heavy Industries
11-2024
PL
Libraries, [504.2 KB]
Mitsubishi Heavy Industries
Libraries, [477.6 KB]
Mitsubishi Heavy Industries
RLC012A101C, User manual, PL, Mitsubishi Heavy Industries, 11-2024, [4.7 MB]
Libraries, , Mitsubishi Heavy Industries, [504.2 KB]
Libraries, , Mitsubishi Heavy Industries, [477.6 KB]
