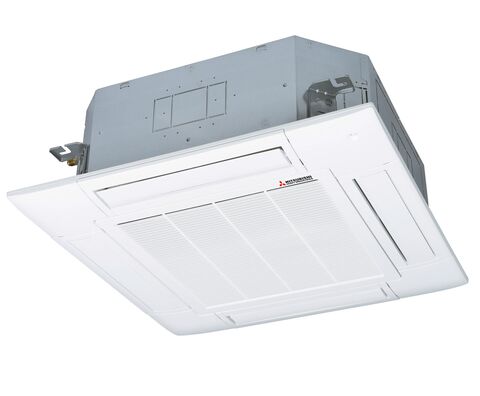

Cassette air conditioner FDT40VH

Producer:
Mitsubishi Heavy Industries
Line: FDT VH
Product code: FDT40VH
  • Cooling capacity [kW]:
    4.00
  • Heating capacity [kW]:
    4.50
Zapytaj

Data

Technical data

Cooling capacity
[kW]
4.00
Heating capacity
[kW]
4.50
Air flow (cooling mode)
[m³/min]
19 / 16 / 13 / 10
Air flow (heating mode)
[m³/min]
19 / 16 / 13 / 10

Acoustic data

Acoustic power (cooling mode)
[dB(A)]
50.0
Acoustic power (heating mode)
[dB(A)]
50.0
Acoustic pressure (cooling mode)
[dB(A)]
36 / 33 / 30 / 26
Acoustic pressure (heating mode)
[dB(A)]
36 / 33 / 28 / 20

Dimensions

Height
[mm]
236
Width
[mm]
840
Depth
[mm]
840
Net weight
[kg]
19

Panel dimensions

Height
[mm]
35
Length
[mm]
950
Width
[mm]
950
Net weight
[kg]
5

Panel

Panel

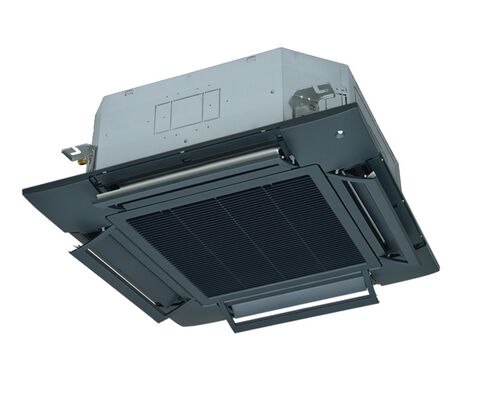

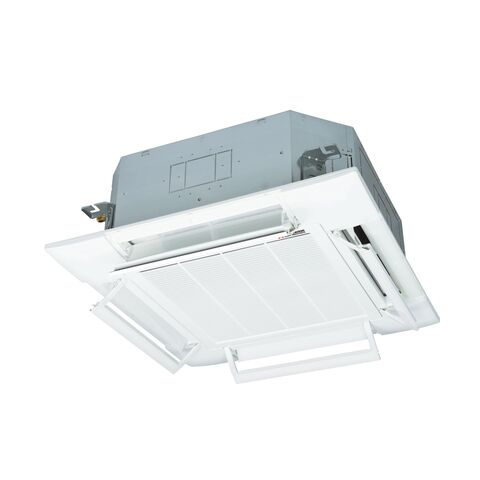

T-PSA-5BB-E (black), T-PSAE-5BB-E (black with draft prevention panel), T-PSA-5BW-E (white), T-PSAE-5BW-E (white with draft prevention panel)

Other

Kind
Split, Simultaneous
Air filter
Polypropylene net
Remote control
RC-ES1 (wired), RC-EX3A (wired), RC-E5 (wired), RCH-E3 (wired), RCN-T-5BW-E2 (wireless), RCN-T-5BB-E2 (wireless)

Dimensions

Dimensions

A. Gas connection
[mm]
12.70
A. Gas connection
[inch]
1/2
B. Liquid connection
[mm]
6.35
B. Liquid connection
[inch]
1/4



C. Drain piping VP25 (O.D.32)
D. Hole for wiring
F. Suspension bolts M10 or M8
G. Outside air opening for ducting
H1, H2. Air outlet opening for ducting ø125, ø200
