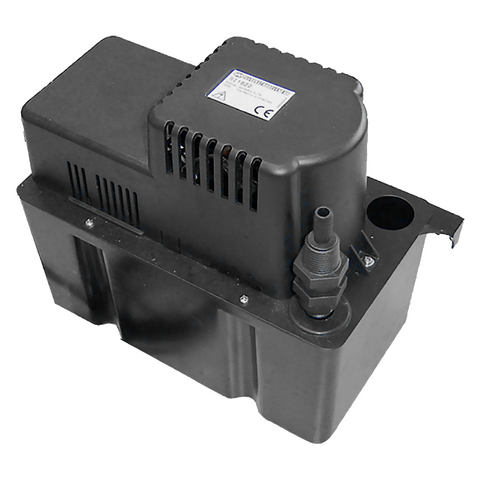

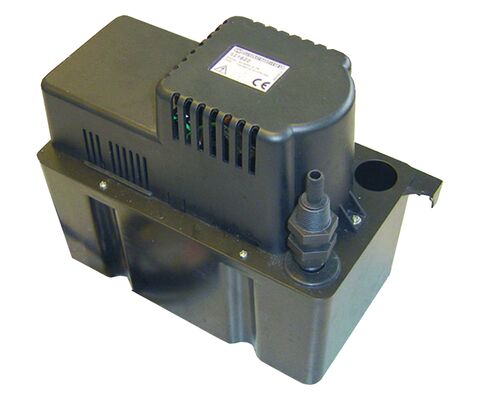

Condensate pump Si-1822 - SI1822SIUN23

Producer:
Sauermann
Product code: SI1822SIUN23
  • Drain pump type:
    Centrifugal
  • Flow rate (max) [l/h]:
    380
  • Discharge head (max) [m]:
    5.8
  • Tank volume [l]:
    3.80
  • Maximum condensation temperature [°C]:
    65
Zapytaj

Data

Technical data

Drain pump type
Centrifugal
Discharge head (max)
[m]
5.8
Nominal discharge head
[m]
6.2
Flow rate (max)
[l/h]
380
Maximum condensate acidity
pH > 3.4 (gas condensing boilers)

Electrical data

Power supply
230V/1Ph/50Hz
Nominal power consumption
[W]
90
Normal state of the alarm relay
Normaly closed
Load capacity of the alarm relay contacts
[A]
4.0
Permissible voltage of the alarm relay
[V]
250
Working conditions
100% - continuous operation
Protection rating
IP20

Dimensions

Tank volume
[l]
3.80
Packaging dimensions
[mm]
305 x 152 x 235
Gross weight
[kg]
3

Temperature and acoustic data

Sound pressure
[dB(A)]
47
Maximum condensation temperature
[°C]
65
Thermal protection temperature
[°C]
105

Detection levels

Activation level
[mm]
75
Deactivation level
[mm]
20
Alarm level
[mm]
90

Other

Product codes
SI1822SIUN23
