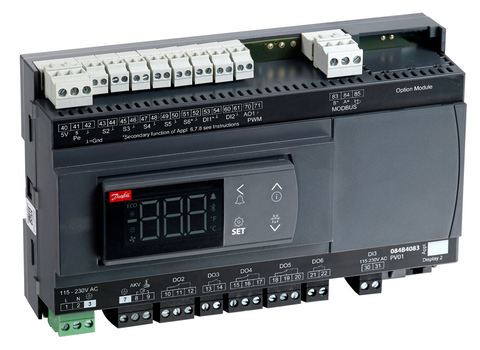

Cold room controller AK-CC55 Single Coil UI

Producer:
Danfoss
Line: AK-CC
Product code: 084B4083
  • Mounting type:
    DIN rail
  • Power supply:
    115V AC, 230V AC
  • Inputs (digital / analog):
    3 / 6
  • Outputs (digital / analog):
    6 / 1
  • Expansion valve type:
    PWM
Ask

Data

Technical data

Mounting type
DIN rail
Power supply
115V AC, 230V AC
Communication protocol
Modbus, LON (option)

Relays

Compressor relay
8 A
Defrost relay
8 A
Evaporator fan relay
8 A
Auxiliary relay 1
8 A
Auxiliary relay 2
8 A

Inputs

Number of analog inputs (max)
6
Number of digital inputs (max)
3
Input signal
NTC 5k, NTC 10k, PT 1000, PTC 1000, Ratiometric

Outputs

Number of analog outputs
1
Number of digital outputs
6
Output signal
PWM, 0-10 V

Other

Expansion valve type
PWM
Number of controled valves
1
Number of compressors
2
Additional features
Plug-in terminals, Temperature and humidity control, CO₂ compliant
Display
Internal, External (optional)
Display model
AK-UI55 Bluetooth, AK-UI55 Set, AK-UI55 Info
Product codes
084B4083, 084B4183
