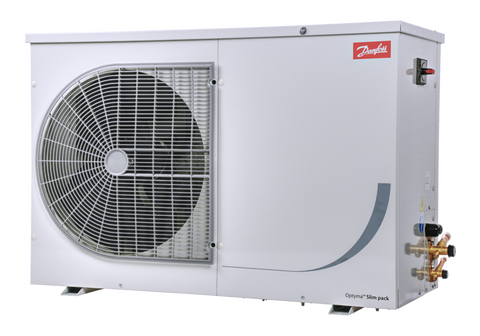

Agregat skraplający Danfoss Optyma Slim Pack OP-MSBM034AJW09E

Producer:
Danfoss
Line: Optyma Slim Pack
Product code: OP-MSBM034AJW09E, alternatives: 114X7193
  • Cooling capacity [kW]:
    2.82
  • Refrigerant:
    R404A, R448A, R449A, R452A
  • Capacity control:
    None
  • Power supply:
    400V/3Ph/50Hz
Zapytaj

Data

Compressor technical data

Compressor model
TAJ4519Z
Capacity control
None
Oil type
POE 32

Compressor electrical data

Compressor power supply
400V/3Ph/50Hz
Maximum continuous current
[A]
4.8

Condenser data

Condenser model
D7
Fan power supply
230V/1Ph/50Hz
Fan quantity
1
Fan diameter
[mm]
450
Fans power
[W]
110
Fan current
[A]
0.47
Air flow
[m³/h]
3,300
Acoustic power
[dB(A)]
71.0
Acoustic pressure (10m)
[dB(A)]
40.0

Condensing unit data

Receiver volume
[l]
3.4
Net weight
[kg]
62
Gross weight
[kg]
77
Housing
Yes
Approved refrigerants
R404A, R448A, R449A, R452A

Dimensions

Length
[mm]
1,087
Height
[mm]
690
Width
[mm]
464

Connections

Suction valve diameter
[inch]
1/2
Liquid line diameter
[inch]
1/2

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Ambiance

Cooling capacity [kW]

Evaporation temperature [°C]
Ambient temperature [°C]

-20
-15
-10
-5
0
5
10
20
2.31
2.86
3.49
4.20
4.99
5.86
6.79
25
2.10
2.62
3.21
3.88
4.61
5.42
6.29
30
1.89
2.38
2.94
3.55
4.23
4.98
5.78
32
1.81
2.29
2.82
3.42
4.08
4.80
5.58
35
1.69
2.14
2.65
3.22
3.85
4.53
5.28
40
1.90
2.37
2.89
3.46
4.09
4.76

Power consumption [kW]

Evaporation temperature [°C]
Ambient temperatura [°C]

-20
-15
-10
-5
0
5
10
20
1.20
1.32
1.44
1.57
1.70
1.83
1.97
25
1.24
1.37
1.50
1.63
1.76
1.90
2.05
30
1.28
1.41
1.55
1.69
1.83
1.98
2.14
32
1.29
1.43
1.57
1.71
1.86
2.02
2.18
35
1.31
1.46
1.60
1.75
1.91
2.07
2.24
40
1.49
1.65
1.82
1.98
2.16
2.34

Application range

Legend

  • Suction gas superheating: 0 K
  • Current operating conditions
