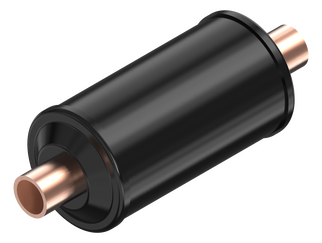

Filter drier DCL 305S

Filter drier DCL 305S

Producer:
Danfoss
Line: DCL
  • Inlet connection type:
    Soldered
  • Inlet connection diameter:
    5/8"
  • Flow direction:
    Single-flow
  • Filter type:
    Dehydrating
  • Pressure drop [bar]:
    0.01
  • Inlet flow speed [m/s]:
    0.64
Ask about product

Data

Technical data

Connection Type *
Soldered, ODF (inch)
Connection diameter *
5/8"
Connection material *
Copper, Cu-plated steel
Flow acid capacity
[g]
6.23
Filter core volume
[cm³]
258
Net weight
[kg]
1.27
Gross weight
[kg]
1.39
Maximum working pressure
[bar]
46

Other

Filter type
Dehydrating
Flow direction
Single-flow
Filter core type
Non-removable
Temperature range
-40°C — 70°C
Approved refrigerants
R134a, R290, R32, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R507, R513A, R600a, R1234yf
Product codes
023Z0032, 023Z4531, 023Z4819

     * Depends on model variant.

Dimensions

Dimension A
[mm]
186
Dimension L
[mm]
236
Dimension B
[mm]
212
Dimension D₁
[mm]
80
Dimension D₂
[mm]
76

Downloads

Catalogue Quick Select Guide refrigeration and air conditioning components
Catalogue, [12.0 MB]
Danfoss
07-2021
EN
Folder HVAC-R system
Folder, [150.3 KB]
Danfoss
02-2018
EN
Data sheet Hermetic filter drier Type DCL, DML
Folder, [2.0 MB]
Danfoss
04-2022
EN
Installation guide DCL, DML
User manual, [361.2 KB]
Danfoss
01-2022
EN
Installation guide DCL
User manual, [283.7 KB]
Danfoss
06-2021
EN
Manufacturer's declaration
Declaration, [907.7 KB]
Danfoss
06-2021
EN
Brochure DMLE and DCLE filter driers
Folder, [994.8 KB]
Danfoss
10-2022
EN
General catalogue Danfoss
Catalogue, [95.1 MB]
Danfoss
02-2019
EN
Catalogue Quick Select Guide refrigeration and air conditioning components
Catalogue, EN, Danfoss, 07-2021, [12.0 MB]
Folder HVAC-R system
Folder, EN, Danfoss, 02-2018, [150.3 KB]
Data sheet Hermetic filter drier Type DCL, DML
Folder, EN, Danfoss, 04-2022, [2.0 MB]
Installation guide DCL, DML
User manual, EN, Danfoss, 01-2022, [361.2 KB]
Installation guide DCL
User manual, EN, Danfoss, 06-2021, [283.7 KB]
Manufacturer's declaration
Declaration, EN, Danfoss, 06-2021, [907.7 KB]
Brochure DMLE and DCLE filter driers
Folder, EN, Danfoss, 10-2022, [994.8 KB]
General catalogue Danfoss
Catalogue, EN, Danfoss, 02-2019, [95.1 MB]
