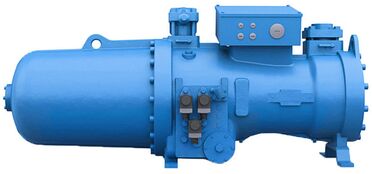

Refrigeration compressor CXH02-100-298AX

Refrigeration compressor CXH02-100-298AX

Producer:
Frascold
Line: CXH
  • Cooling capacity [kW]:
    130.13
  • Displacement [m³/h]:
    298
  • Refrigerant:
    R290, R1234yf
  • Capacity control:
    None, Step (option), Inverter (option)
  • Power supply:
    400V/3Ph/50Hz
Ask about product

Data

Technical data

Displacement
[m³/h]
298
Oil charge
[l]
11.00
Oil type
POE170
Type of lubrication
Oil pump
Net weight
[kg]
560.00

Electrical data

Power supply
400V/3Ph/50Hz
Maximum operating current
[A]
175.0
Locked rotor amperage
[A]
488.0
Locked rotor amperage, DOL
[A]
767.0
Nominal motor power for 50 Hz
[kW]
74.57
Nominal motor power for 50 Hz
[HP]
100.00
Motor connection
PWS

Dimensions

Suction tube diameter (SL) ¹
[inch]
3 1/8
Suction valve diameter (SV) ²
[inch]
3 1/8
Suction valve diameter (SV) ²
[mm]
80.0
Discharge valve diameter (DV)
[inch]
2 1/8
Discharge valve diameter (DV)
[mm]
54.0
Length
[mm]
1,393
Height
[mm]
625
Width
[mm]
548

Other

Approved refrigerants
R290, R1234yf
Capacity control
None, Step (option), Inverter (option)

1 No valve version.
2 Valve version.

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-20
-15
-10
-5
0
5
7.5
10
12.5
60
95.55
119.43
148.39
182.62
201.78
222.32
244.28
55
85.22
106.80
133.21
164.63
201.25
221.57
243.27
266.36
50
75.22
94.53
118.42
147.05
180.62
219.33
240.67
263.36
287.43
45
82.87
104.25
130.13
160.69
196.11
236.60
258.81
282.35
307.25
40
90.97
114.12
141.69
173.87
210.85
252.82
275.73
299.97
325.55
35
99.28
123.89
152.84
186.34
224.57
267.72
291.20
315.98
342.09
30
107.53
133.30
163.34
197.86
237.03
281.06
304.95
330.13
356.61
25
115.47
142.09
172.93
208.16
247.98
292.58
20
122.85
150.03
181.34
216.99

Power consumption [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-20
-15
-10
-5
0
5
7.5
10
12.5
60
79.01
80.42
81.97
83.79
84.84
86.01
87.30
55
70.96
72.33
73.72
75.25
77.05
78.09
79.24
80.52
50
63.77
65.21
66.54
67.89
69.39
71.14
72.15
73.28
74.53
45
58.83
60.22
61.49
62.78
64.21
65.90
66.88
67.97
69.19
40
54.52
55.82
57.02
58.23
59.57
61.17
62.11
63.16
64.33
35
50.67
51.87
52.97
54.07
55.31
56.81
57.69
58.68
59.80
30
47.13
48.21
49.18
50.16
51.27
52.64
53.46
54.39
55.44
25
43.73
44.68
45.50
46.34
47.30
48.52
20
40.33
41.11
41.78
42.44

Application range (without economiser version)

Legend

  • With additional header cooling
  • Without cooling
  • Current operating conditions

Application range (with economiser version)

Legend

  • With additional header cooling
  • Without cooling
  • Current operating conditions

Reference conditions - suction gas superheating: 10 K, subcooling: 0 K.

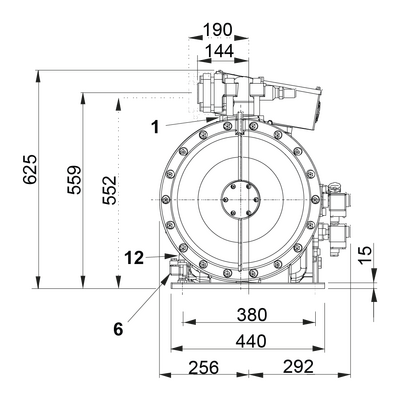

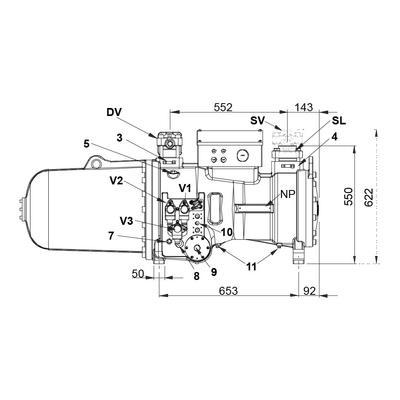

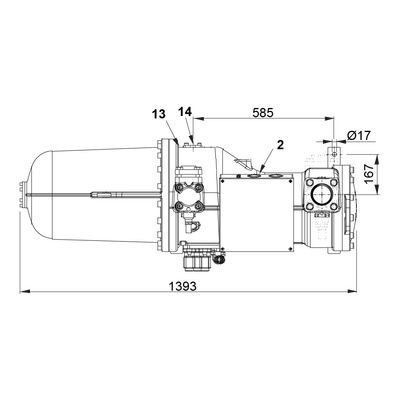

Dimensions

Symbols

1 High pressure connection 1/8" NPT
2 Low pressure connection 1/8" NPT
3 High pressure connection 1/4" SAE x 1/4" SAE
4 Low pressure connection 1/4" SAE x 1/4" SAE
5 Oil charge plug 3/8" GAS
6 Crankcase heater -
7 Oil level regulator connection 3/4" NPT
8 Oil level sight glass -
9 Filter clogging sensor connection 1/2" GAS
10 Oil cooler connection 1/2" NPT
11 Oil drain plug 1/4" NPT
12 Oil drain valve 1/8" NPT
13 Maximum oil temperature sensor -
14 ECO/liquid injection connection 1 1/8"



V1-V3 Capacity control valve
DV Discharge valve
SV Suction valve
SL Suction line
NP Nameplate
