Reciprocating compressor MX21FGa

Reciprocating compressor MX21FGa

Producer:
Cubigel Compressors
Line: X
  • Cooling capacity [W]:
    1,506
  • Cylinder volume [cm³]:
    20.72
  • Refrigerant:
    R404A
  • Applications:
    LBP
  • Power supply:
    230V/1Ph/50Hz
Ask about product

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
630
Nominal cooling capacity (ASHRAE)
[kcal/h]
805
Displacement
[m³/h]
3.73
Cylinder volume
[cm³]
20.72
Cylinder bore
[mm]
34.9
Cylinder stroke
[mm]
21.6
Oil charge
[l]
0.65
Oil type
ISO VG 32 ESTER
Net weight
[kg]
16.76

Electrical data and limits

Power supply
200-220/220-230V 50/60Hz ~1
Maximum continuous current
[A]
6.5
Locked rotor amperage
[A]
29.6
Motor resistance main
[Ω]
2.50
Motor resistance start
[Ω]
5.98
Electrical motor type
CSR
Type of torque
HST
Maximum ambient temperature
[°C]
43

Dimensions

Suction / Service tube diameter (1)
[mm]
9.7
Discharge tube diameter (2)
[mm]
6.5
Service / Suction tube diameter (2)
[mm]
9.7

Other

Approved refrigerants
R404A
Expansion device
Capillary tube, Expansion valve
Compressor cooling
Fan
Approvals
UL
Applications
LBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-40
-35
-30
-25
-20
-15
-10
40
307
465
651
867
1,114
1,393
1,705
45
254
387
549
741
963
1,218
1,506
50
312
450
617
815
1,044
1,308
55
353
495
668
872
1,111
60
376
523
702
914

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-40
-35
-30
-25
-20
-15
-10
40
457
528
607
694
789
892
1,003
45
433
509
594
687
788
897
1,013
50
491
581
680
786
901
1,024
55
568
673
785
906
1,034
60
665
784
910
1,044

Application range

Legend

  • Current operating conditions

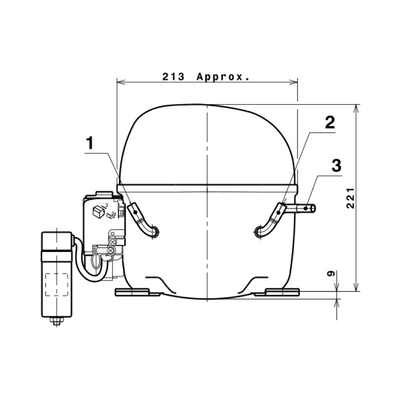

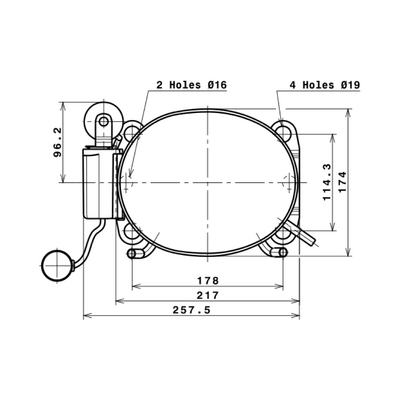

Dimensions

Dimension A
[mm]
221

Downloads

Certificate. Approved place of manufacture
Certificate, [47.8 KB]
Cubigel Compressors
12-2021
EN
Certificate. Design and production of hermetic compressors and condensing units for commercial and domestic refrigerators
Certificate, [1.7 MB]
Cubigel Compressors
12-2020
EN
Declaration of conformity relating to the restriction of the use of certain hazardous substances in electrical appliances
Declaration, [565.1 KB]
Cubigel Compressors
12-2017
EN
Registration, Evaluation and Authorization of Chemicals
Certificate, [225.4 KB]
Cubigel Compressors
11-2020
EN
Compressors for low GWP refrigerant alternatives
Folder, [4.1 MB]
Cubigel Compressors
12-2020
EN
Low GWP alternatives to HFCs
Folder, [6.2 MB]
Cubigel Compressors
05-2021
EN
User manual 12-24V DC Compressors
User manual, [4.6 MB]
Cubigel Compressors
12-2019
EN
Users manual GLT80TDC
User manual, [1.1 MB]
Cubigel Compressors
08-2021
EN
GLT80TDC installing guide
User manual, [1.6 MB]
Cubigel Compressors
11-2015
EN
Technical Note GLT80TDC
Technical documentation, [457.9 KB]
Cubigel Compressors
07-2013
EN
Recommendations on measurement of the compressor’s motor coil temperature
Technical documentation, [263.6 KB]
Cubigel Compressors
07-2013
EN
Technical Note NPT12FSC
Technical documentation, [774.5 KB]
Cubigel Compressors
07-2013
EN
Technical note use of R290 refrigerant recommendations
Technical documentation, [494.4 KB]
Cubigel Compressors
09-2018
EN
Technical note recommendations on compressor’s working conditions
Technical documentation, [313.9 KB]
Cubigel Compressors
09-2017
EN
Technical note. Refrigerant charge process Cubigel Compressors GP – MP ranges
Technical documentation, [365.7 KB]
Cubigel Compressors
07-2017
EN
Technical Note Refrigerants
Technical documentation, [222.8 KB]
Cubigel Compressors
02-2014
EN
Cubigel compressors declaration of conformity
Declaration, [413.2 KB]
Cubigel Compressors
04-2016
EN
Cubigel compressors declaration of incorporation
Declaration, [61.8 KB]
Cubigel Compressors
EN
Universal compressor NST38NA. LMHBP Application
Folder, [1.9 MB]
Cubigel Compressors
05-2021
EN
Variable speed compressors R290
Folder, [2.3 MB]
Cubigel Compressors
07-2021
EN
Variable speed compressors
Folder, [341.5 KB]
Cubigel Compressors
07-2013
EN
Hermetic compressor applications for commercial refrigeration
Folder, [1.5 MB]
Cubigel Compressors
05-2022
PL
R290 Compressors Catalogue
Catalogue, [1.2 MB]
Cubigel Compressors
09-2019
EN
General Catalouge Compressors
Catalogue, [5.3 MB]
Cubigel Compressors
05-2022
EN
Capillary tube selection software user manual
User manual, [1.5 MB]
Cubigel Compressors
03-2018
EN
Certificate. Approved place of manufacture
Certificate, EN, Cubigel Compressors, 12-2021, [47.8 KB]
Certificate. Design and production of hermetic compressors and condensing units for commercial and domestic refrigerators
Certificate, EN, Cubigel Compressors, 12-2020, [1.7 MB]
Declaration of conformity relating to the restriction of the use of certain hazardous substances in electrical appliances
Declaration, EN, Cubigel Compressors, 12-2017, [565.1 KB]
Registration, Evaluation and Authorization of Chemicals
Certificate, EN, Cubigel Compressors, 11-2020, [225.4 KB]
Compressors for low GWP refrigerant alternatives
Folder, EN, Cubigel Compressors, 12-2020, [4.1 MB]
Low GWP alternatives to HFCs
Folder, EN, Cubigel Compressors, 05-2021, [6.2 MB]
User manual 12-24V DC Compressors
User manual, EN, Cubigel Compressors, 12-2019, [4.6 MB]
Users manual GLT80TDC
User manual, EN, Cubigel Compressors, 08-2021, [1.1 MB]
GLT80TDC installing guide
User manual, EN, Cubigel Compressors, 11-2015, [1.6 MB]
Technical Note GLT80TDC
Technical documentation, EN, Cubigel Compressors, 07-2013, [457.9 KB]
Recommendations on measurement of the compressor’s motor coil temperature
Technical documentation, EN, Cubigel Compressors, 07-2013, [263.6 KB]
Technical Note NPT12FSC
Technical documentation, EN, Cubigel Compressors, 07-2013, [774.5 KB]
Technical note use of R290 refrigerant recommendations
Technical documentation, EN, Cubigel Compressors, 09-2018, [494.4 KB]
Technical note recommendations on compressor’s working conditions
Technical documentation, EN, Cubigel Compressors, 09-2017, [313.9 KB]
Technical note. Refrigerant charge process Cubigel Compressors GP – MP ranges
Technical documentation, EN, Cubigel Compressors, 07-2017, [365.7 KB]
Technical Note Refrigerants
Technical documentation, EN, Cubigel Compressors, 02-2014, [222.8 KB]
Cubigel compressors declaration of conformity
Declaration, EN, Cubigel Compressors, 04-2016, [413.2 KB]
Cubigel compressors declaration of incorporation
Declaration, EN, Cubigel Compressors, [61.8 KB]
Universal compressor NST38NA. LMHBP Application
Folder, EN, Cubigel Compressors, 05-2021, [1.9 MB]
Variable speed compressors R290
Folder, EN, Cubigel Compressors, 07-2021, [2.3 MB]
Variable speed compressors
Folder, EN, Cubigel Compressors, 07-2013, [341.5 KB]
Hermetic compressor applications for commercial refrigeration
Folder, PL, Cubigel Compressors, 05-2022, [1.5 MB]
R290 Compressors Catalogue
Catalogue, EN, Cubigel Compressors, 09-2019, [1.2 MB]
General Catalouge Compressors
Catalogue, EN, Cubigel Compressors, 05-2022, [5.3 MB]
Capillary tube selection software user manual
User manual, EN, Cubigel Compressors, 03-2018, [1.5 MB]
