Reciprocating compressor W60-187Y

Reciprocating compressor W60-187Y

Producer:
Frascold
Line: W
  • Cooling capacity [kW]:
    86.90
  • Displacement [m³/h]:
    186
  • Refrigerant:
    R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R507, R513A
  • Capacity control:
    None, Step (option), Inverter (option)
  • Power supply:
    400V/3Ph/50Hz
Ask about product

Data

Technical data

Displacement
[m³/h]
186
Cylinders quantity
8
Oil charge
[l]
7.70
Oil type
POE68
Type of lubrication
Oil pump
Net weight
[kg]
315.00

Electrical data

Power supply
400V/3Ph/50Hz
Maximum operating current
[A]
103.5
Locked rotor amperage
[A]
326.0
Locked rotor amperage, DOL
[A]
455.0
Maximum motor frequency
[Hz]
70
Minimum motor frequency
[Hz]
30
Nominal motor power for 50 Hz
[kW]
44.74
Nominal motor power for 50 Hz
[HP]
60.00
Motor connection
PWS

Dimensions

Suction valve diameter (SV)
[inch]
3 1/8
Suction valve diameter (SV)
[mm]
80.0
Discharge valve diameter (DV)
[inch]
1 5/8
Discharge valve diameter (DV)
[mm]
42.0
Length
[mm]
838
Height
[mm]
588
Width
[mm]
511

Other

Approved refrigerants
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R507, R513A
Capacity control
None, Step (option), Inverter (option)

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
5
7.5
55
39.76
51.73
66.23
83.75
104.80
129.90
144.14
50
25.95
35.28
46.55
60.18
76.60
96.30
119.74
147.43
163.02
45
30.30
40.72
53.34
68.59
86.90
108.73
134.54
164.77
181.69
40
34.70
46.18
60.13
76.96
97.12
121.04
149.17
181.92
200.14
35
39.16
51.66
66.89
85.28
107.25
133.24
163.65
198.87
218.37
30
43.66
57.14
73.63
93.54
117.29
145.30
177.96
215.60
236.37
25
48.18
62.62
80.32
101.72
127.22
157.22
192.09
232.12
254.13
20
52.72
68.08
86.97
109.83
137.04
168.99
206.03

Power consumption [kW]

Evaporation temperature [°C]
Condensation temperature [°C]

-30
-25
-20
-15
-10
-5
0
5
7.5
55
33.54
38.32
43.17
47.99
52.66
57.07
59.14
50
24.75
28.84
33.16
37.59
42.03
46.36
50.46
54.23
55.95
45
24.66
28.53
32.56
36.63
40.62
44.43
47.93
51.02
52.38
40
24.44
28.06
31.76
35.43
38.95
42.20
45.07
47.46
48.43
35
24.08
27.42
30.76
34.00
37.00
39.67
41.88
43.53
44.10
30
23.58
26.61
29.57
32.34
34.80
36.85
38.37
39.24
39.40
25
22.96
25.64
28.18
30.45
32.34
33.74
34.53
34.60
34.33
20
22.21
24.51
26.60
28.34
29.62
30.34
30.37

Application range

Legend

  • With additional header cooling
  • Without cooling
  • Current operating conditions

Reference conditions - suction gas temperature: 20°C, subcooling: 0 K.

Dimensions

Symbols

1 High pressure connection 1/8" NPT
2 Low pressure connection 1/4" NPT
3 Oil charge plug 3/8" GAS
4 Oil level sight glass -
5 Crankcase heater seat -
6 Oil drain plug 1/4" GAS
7 Liquid injection plug 1/4" NPT
8 Liquid injection sensor plug 1/8" NPT
9 Oil pressure switch connection (LP) 1/4" NPT
10 Oil pressure switch connection (HP) 1/4" SAE
11 Oil filter 3/8" GAS
12 Oil return plug 1/4" NPT
14 Max. discharge temperature sensor connection 1/8" NPT
15 Electronic oil pressure switch connection -



DV Discharge valve
SV Suction valve
NP Nameplate

Compressor dimensions

Dimension A
[mm]
838
Dimension B
[mm]
511
Dimension C
[mm]
588
Dimension D
[mm]
458
Dimension E
[mm]
305

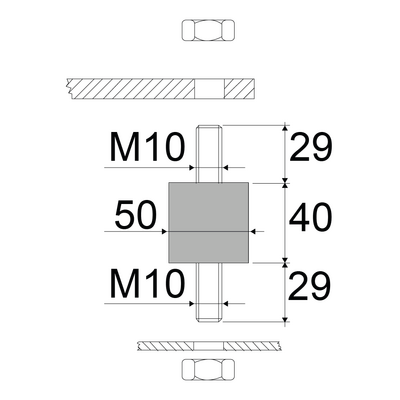

Valves position

Dimension F
[mm]
158
Dimension G
[mm]
486
Dimension H
[mm]
160
Dimension L
[mm]
95
Dimension M
[mm]
358
Dimension N
[mm]
95
