Reciprocating compressor GE80TG

Reciprocating compressor GE80TG

Producer:
Cubigel Compressors
Line: U
  • Cooling capacity [W]:
    383
  • Cylinder volume [cm³]:
    8.1
  • Refrigerant:
    R134a
  • Applications:
    HBP
  • Power supply:
    230V/1Ph/50Hz
Ask about product

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
687
Nominal cooling capacity (ASHRAE)
[kcal/h]
714
Displacement
[m³/h]
1.46
Cylinder volume
[cm³]
8.1
Cylinder bore
[mm]
24.3
Cylinder stroke
[mm]
17.5
Oil charge
[l]
0.22
Oil type
ISO VG 22 ESTER
Net weight
[kg]
8.80

Electrical data and limits

Power supply
220-240/230V 50/60Hz ~1
Locked rotor amperage
[A]
14.7
Motor resistance main
[Ω]
9.60
Motor resistance start
[Ω]
24.50
Electrical motor type
CSIR
Type of torque
HST
Maximum ambient temperature
[°C]
43

Dimensions

Suction / Service tube diameter (1)
[mm]
6.2
Discharge tube diameter (2)
[mm]
4.9
Service / Suction tube diameter (2)
[mm]
6.2

Other

Approved refrigerants
R134a
Expansion device
Capillary tube, Expansion valve
Compressor cooling
Fan
Approvals
UL, VDE
Applications
HBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-15
-10
-5
0
5
10
40
333
412
515
642
793
969
45
309
383
480
603
750
922
50
285
353
446
564
706
874
55
261
324
412
525
663
827
60
295
378
486
620
780
65
267
344
447
576
732

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-15
-10
-5
0
5
10
40
263
270
283
300
322
349
45
260
272
290
312
339
371
50
256
274
297
324
356
392
55
253
276
304
336
373
414
60
278
310
348
389
436
65
280
317
359
406
458

Application range

Legend

  • Current operating conditions

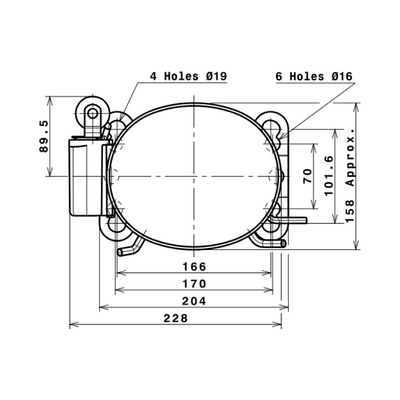

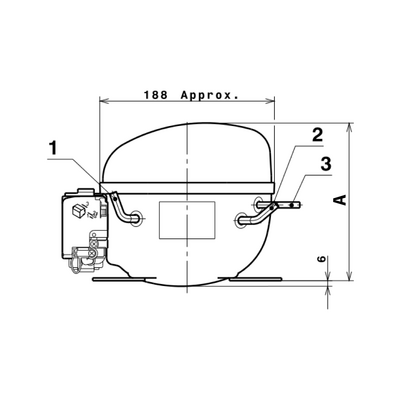

Dimensions

Dimension A
[mm]
173,5
