Reciprocating compressor B43H

Reciprocating compressor B43H

Producer:
Cubigel Compressors
Line: B
  • Cooling capacity [W]:
  • Cylinder volume [cm³]:
    4.3
  • Compressor cooling:
    Static, Fan
  • Applications:
    LBP
  • Power supply:
    230V/1Ph/50Hz
Ask about product

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
71
Nominal cooling capacity (ASHRAE)
[kcal/h]
84
Displacement
[m³/h]
0.774
Cylinder volume
[cm³]
4.3
Cylinder bore
[mm]
19.0
Cylinder stroke
[mm]
7.6
Oil charge
[l]
0.13
Oil type
ISO VG 15 ESTER
Net weight
[kg]
5.4

Electrical data and limits

Power supply
220-240V 50/60Hz ~1
Locked rotor amperage
[A]
4.3
Motor resistance main
[Ω]
26.50
Motor resistance start
[Ω]
9.40
Electrical motor type
RSIR
Type of torque
LST
Maximum ambient temperature
[°C]
43

Dimensions

Suction tube diameter (1)
[mm]
6.1
Discharge tube diameter (3)
[mm]
5.1
Service tube diameter (2)
[mm]
6.1

Other

Approved refrigerants
R134a
Expansion device
Capillary tube
Compressor cooling
Static, Fan
Approvals
VDE
Applications
LBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-35
-30
-25
-20
-15
30
61
88
119
155
195
35
54
79
108
141
178
40
47
70
97
127
162
45
41
61
85
114
146
50
35
53
74
100
130
55
29
44
63
87
114
60
36
52
73
98
65
27
42
60
83

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-35
-30
-25
-20
-15
30
96
94
95
101
110
35
93
92
95
102
113
40
90
91
95
104
116
45
86
89
95
105
119
50
83
87
95
107
122
55
80
86
95
109
125
60
84
95
110
129
65
83
95
112
132

Application range

Legend

  • Current operating conditions

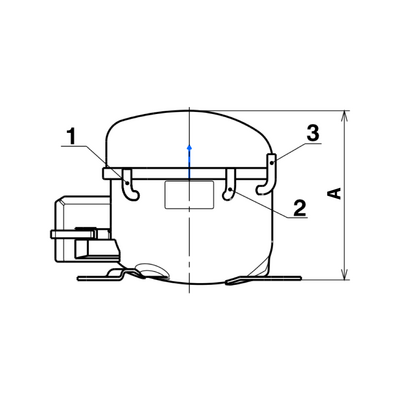

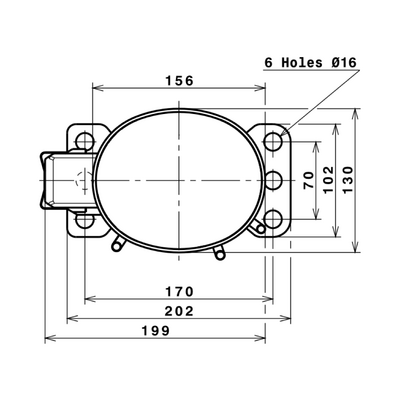

Dimensions

Dimension A
[mm]
155
