Reciprocating compressor B43GL

Reciprocating compressor B43GL

Producer:
Cubigel Compressors
Line: B
  • Cooling capacity [W]:
    187
  • Cylinder volume [cm³]:
    4.3
  • Compressor cooling:
    Fan
  • Applications:
    HBP
  • Power supply:
    230V/1Ph/50Hz
Ask about product

Data

Technical data

Nominal cooling capacity (CECOMAF)
[W]
348
Nominal cooling capacity (ASHRAE)
[kcal/h]
360
Displacement
[m³/h]
0.774
Cylinder volume
[cm³]
4.3
Cylinder bore
[mm]
19.0
Cylinder stroke
[mm]
15.2
Oil charge
[l]
0.12
Oil type
POE 32
Net weight
[kg]
5.50

Electrical data and limits

Power supply
220-240V 50Hz ~1
Locked rotor amperage
[A]
7.2
Motor resistance main
[Ω]
14.50
Motor resistance start
[Ω]
9.30
Electrical motor type
RSIR
Type of torque
HST
Maximum ambient temperature
[°C]
43

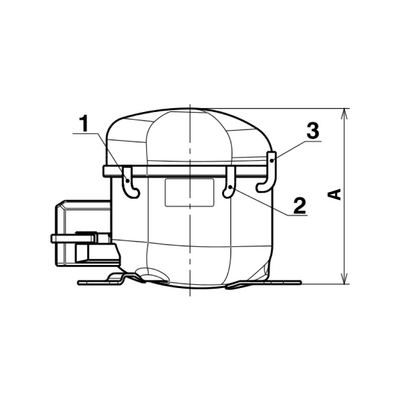

Dimensions

Suction tube diameter (1)
[mm]
6.1
Discharge tube diameter (3)
[mm]
5.1
Service tube diameter (2)
[mm]
6.1

Other

Approved refrigerants
R134a
Expansion device
Capillary tube, Expansion valve
Compressor cooling
Fan
Approvals
VDE
Applications
HBP

Performance

Invalid data supplied. Correct them and try again.
Performance
Evaporation
Condensation

Cooling capacity [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-15
-10
-5
0
5
10
40
154
203
259
323
395
475
45
140
187
242
305
375
454
50
126
171
225
286
356
433
55
112
156
208
268
336
413
60
140
190
249
316
392
65
125
173
231
297
372

Power consumption [W]

Evaporation temperature [°C]
Condensation temperature [°C]

-15
-10
-5
0
5
10
40
148
157
165
175
184
195
45
150
159
169
180
191
202
50
151
162
173
185
198
210
55
153
165
178
191
204
218
60
168
182
196
211
226
65
171
186
201
217
234

Application range

Legend

  • Current operating conditions

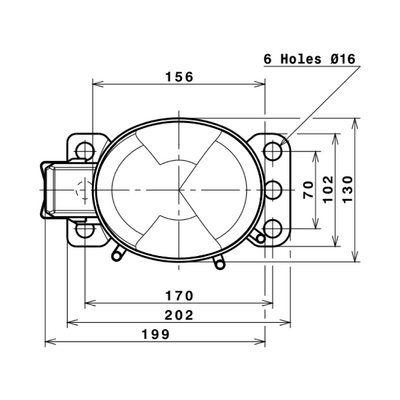

Dimensions

Dimension A
[mm]
159
