FMDX 4413

FMDX 4413

Producer:
Alfa LU-VE
Line: Optigo FMDX
  • Nominal capacity [kW]:
    15.80
  • Air flow [m³/h]:
    6,780
  • Fin spacing [mm]:
    3.0
  • Air throw [m]:
    15
  • Fans [n° x ⌀mm]:
    4 x 350
Ask about product

Data

Evaporator technical data

Nominal capacity - high speed
[kW]
15.80
Nominal capacity - low speed
[kW]
13.60
Air flow - high speed
[m³/h]
6,780
Air flow - low speed
[m³/h]
5,220
Air throw - high speed
[m]
15.0
Air throw - low speed
[m]
12.0
Surface external
[m²]
76.80
Inner volume
[dm³]
7.3
Fin spacing
[mm]
3.0
Net weight
[kg]
82.00

Fans technical data

Fan quantity
4
Fan diameter
[mm]
350
Fans power
[W]
340
Fan current
[A]
2.92
Fan power supply
230V/1Ph/50Hz
Fan motor type
EC
Fan speed - high speed
[RPM]
1100
Fan speed - low speed
[RPM]
870
Air speed - high speed
[m/s]
1.88
Air speed - low speed
[m/s]
1.44
Minimal working temperature
[°C]
-25

Defrost

Electric defrost power
[W]
6,200

Connections

Coil connection (inlet)
[mm]
12
Coil connection (outlet)
[mm]
16

Acoustic data

Acoustic pressure (3m) - high speed
[dB(A)]
55
Acoustic pressure (3m) - low speed
[dB(A)]
48
Acoustic power - high speed
[dB(A)]
76
Acoustic power - low speed
[dB(A)]
69

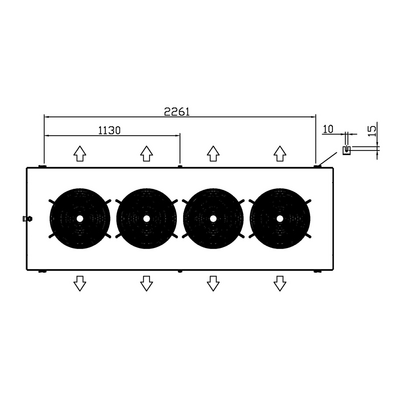

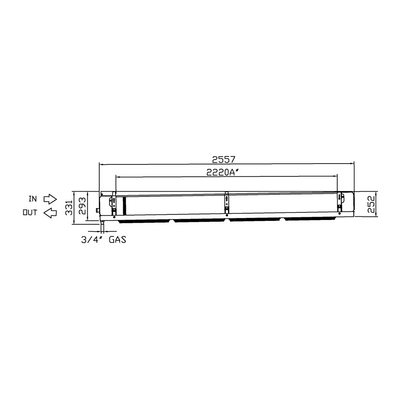

Dimensions

Length
[mm]
2,553
Height
[mm]
263
Width
[mm]
886
