Rhoss units Eurovent certification
Certificate, [276.2 KB]
Log in to download this file
1 Inlet air temperature 7°C DB (6°C WB), hot water temperature 45°C, temperature differential at condenser 5K, fouling factor of 0 m2 K/W.
2 Condenser inlet air temperature 35°C, chilled water temperature 7°C, temperature differential at evaporator 5K, fouling factor equal to 0 m2 K/W.
3 Chilled water outlet temperature at the evaporator (main exchanger) 7°C, temperature differential at the evaporator 5 K, hot water outlet temperature at the recuperator (secondary exchanger) 45°C at nominal flow rate.
4 In low-temperature installations, for a water temperature of 35°C; in average climate.
5 Upper ambient temperature limit depending on the unit's operating mode.
6 The total sound power level in dB(A) based on measurements made in accordance with the UN EN ISO 9614 and Eurovent 8/1 standard.
7 In open field (Q = 2) at 10 m from the unit.
8 Data calculated in accordance with EN 14511 under nominal conditions.
E - Main Heat Exchanger. The heat exchanger connected to the internal system:
— The fancoil coil, which is used for both cooling and heating in 2-pipe installations, or
— The fancoil coil, which is used for cooling only in 4-pipe installations.
R - Recovery Heat Exchanger.The heat exchanger connected to the internal system:
— The heating coil of the fancoil, which is used for heating only in 4-pipe installations, and/or
— The domestic hot water (DHW) tank heat exchanger.
S - Air side condenser/evaporator. The external heat exchanger responsible for:
— Rejecting waste heat to the environment in cooling mode (Mode A1), or
— Absorbing free heat from the environment in heating mode (Modes S1, A2, A3).
A1 - Cooling mode. The unit absorbs heat from the Main Heat Exchanger operating as an evaporator and rejects it to the External Heat Exchanger operating as a condenser.
S1 - Heating mode. The unit absorbs heat in the External Heat Exchanger operating as an evaporator and transfers it to the Main Heat Exchanger operating as a condenser.
S2, A3 - Heating mode. The unit absorbs heat in the External Heat Exchanger operating as an evaporator and transfers it to the Heat Recovery Exchanger operating as a condenser.
A2 - Heat recovery mode. The unit absorbs heat from the Main Heat Exchanger operating as an evaporator and transfers it to the Heat Recovery Exchanger operating as a condenser.
Curved arrows show the heat flow direction between exchangers in a given operating mode.

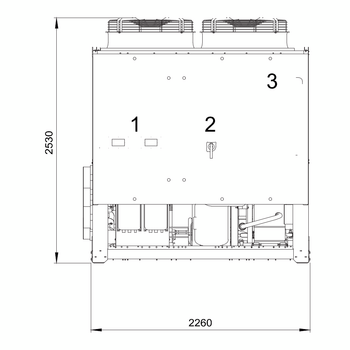

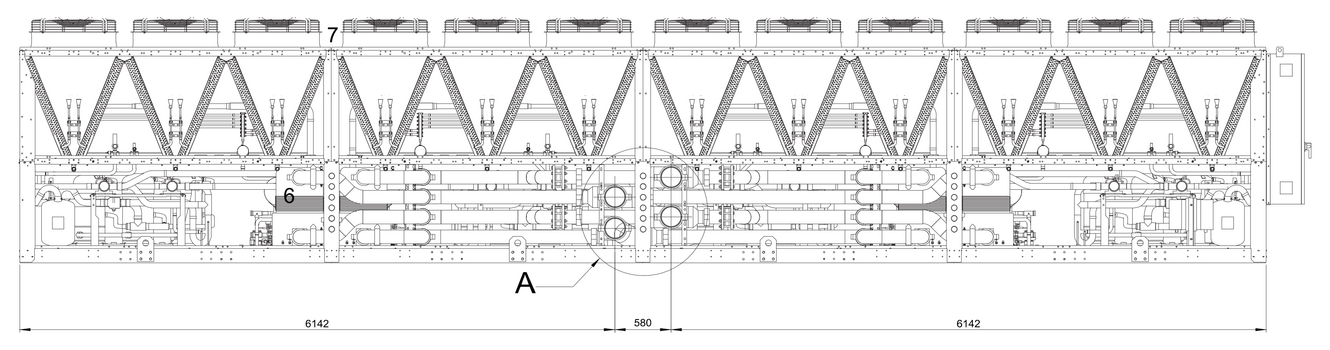

| 1 | Control panel |
| 2 | Isolator |
| 3 | Electrical Control Board |
| 4 | Cooling circuit pressure gauges (GM accessory) |
| 5 | Compressor |
| 6 | Evaporator |
| 7 | Fan |
| 8 | Coil |

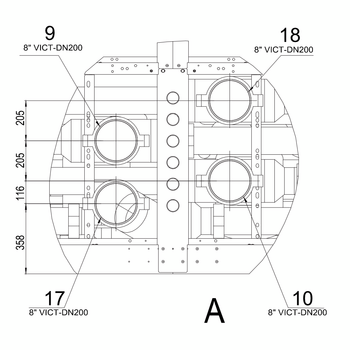

| 9 | Main heat exchanger water inlet |
| 10 | Main heat exchanger water outlet |
| 11 | Anti-vibration support |
| 12 | Coil protection net |
| 13 | Side damping panels |
| 14 | Lower compartment protection mesh |
| 15 | Power supply inlet |
| 16 | Compressor soundproofing |
| 17 | Secondary/recovery heat exchanger water inlet |
| 18 | Secondary/recovery heat exchanger water outlet |
