POKER-P heat pumps energy labels
Energy label, [186.8 KB]
Log in to download this file
1 Ambient temperature: 7°C DB (6°C WB), water temperature: 30°C (inlet) / 35°C (outlet)
2 Ambient temperature: 7°C DB (6°C WB), water temperature: 40°C (inlet) / 45°C (outlet)
3 Ambient temperature: 35°C DB, water temperature: 12°C (inlet) / 7°C (outlet)
4 Ambient temperature: 35°C DB, water temperature: 23°C (inlet) / 18°C (outlet)
5 In medium-temperature installations, for a water temperature of 55°C
6 In low-temperature installations, for a water temperature of 35°C
7 In open field (Q = 2) at 10 m from the unit
8 Data calculated in accordance w ith EN 14511 under nominal conditions

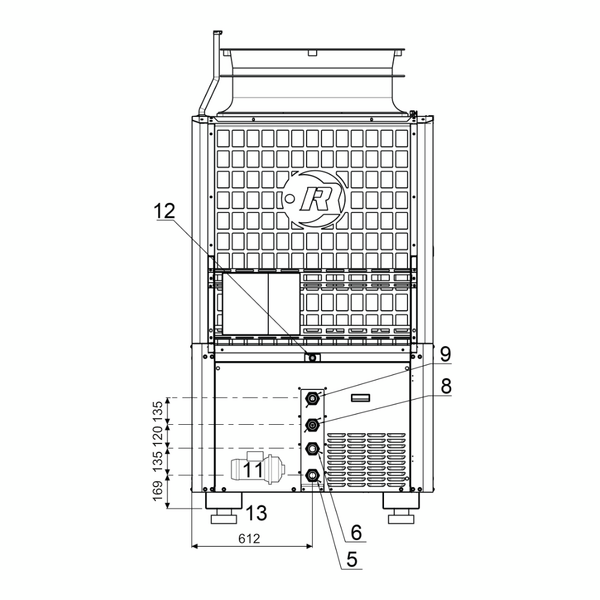

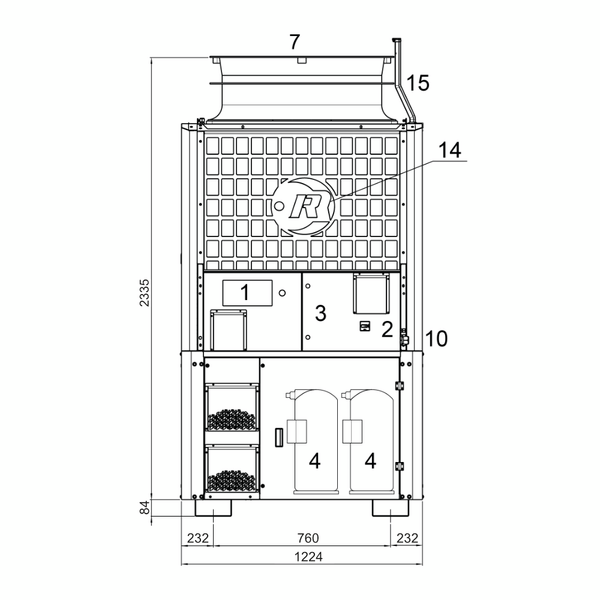

| 1 | Control panel |
| 2 | Isolator |
| 3 | Electrical Control Board |
| 4 | Compressor |
| 5 | Main heat exchanger water inlet |
| 6 | Main heat exchanger water outlet |
| 7 | Fan |
| 8 | Recovery water inlet (DS accessory) or 3-way valve (V3V) |
| 9 | Recovery water outlet (DS accessory) or 3-way valve (V3V) |
| 10 | Power supply inlet |
| 11 | Electric pump |
| 12 | Condensate drain outlet |
| 13 | Anti-vibration mounts (SAG accessory) |
| 14 | Coil protection mesh (accessory RPB) |
| 15 | Safety valve manifolds |
